1. INTRODUCTION
Many meta-heuristic search algorithms have been developed over the past decades and have proven useful in solving various optimization problems in technical fields. Such as genetic algorithm-simulated annealing, ant colony optimization, particle swarm optimization, bee algorithm, firefly algorithm [1], bat inspired approach (BIA) [2]. The main reasons metaheuristic algorithms are more popular among researchers than traditional optimization techniques, such as gradient-based techniques are algorithmic simplicity, ease of implementation, and versatility of solutions [3]. However, when solving some complex optimization problems, such as discrete structure optimization [4], water supply network construction [5], and vehicle routing problems [6]. Conventional optimization algorithms cannot provide reasonable and accurate solutions in a limited time.
In this article, we combine two metaheuristic algorithms, Harmony Search (HS) and Cuckoo Search Optimizer (CS), to produce a hybrid CSHS algorithm. Comparing eight benchmark optimization problems of the proposed algorithm with standard Cuckoo Search CS, Bat Algorithm BA, and standard Harmony Search HS, we find that CSHS performs better on most benchmark optimization problems than other algorithms where HS is prone to local minima. To alleviate this drawback, CS [7] can be used to perform local searches more efficiently.
In the last few years, various meta-heuristic algorithms have been created, and these algorithms have successfully settled problems related to optimization in different technical areas. These algorithms include genetic algorithm simulated annealing, particle swarm optimization, bee algorithm, ant colony optimization, firefly algorithm [1], bat inspired approach (BIA) [2]. There are a few reasons why metaheuristic algorithms are preferred over traditional optimization techniques. The metaheuristic algorithms are simple, and they can be easily applied. Furthermore, they provide comprehensive solutions that can be adapted to many different situations. When it comes to more complicated optimization problems such as vehicle routing problems, metaheuristic algorithms can provide reasonable solutions, while conventional algorithms cannot provide precise and logical solutions in a short time.
This article seeks to take advantage of using both Cuckoo Search and HS Optimizer to create a hybrid CSHS algorithm. Comparing eight benchmark optimization problems of the proposed algorithm with standard CS, standard BA, and standard HS, we find that CSHS performs better on most benchmark optimization problems than other algorithms where HS is prone to local minima. To alleviate this drawback, CS [7] can be used to perform local searches more efficiently.
2. METAHEURISTIC ALGORITHMS
2.1. Harmony Search (HS) Algorithm
The Harmony Search (HS) algorithm was recently introduced by Geem et al. It is believed to be a powerful population-based metaheuristic algorithm [8]. This search algorithm is influenced by what musicians do to achieve harmonic state through repeatedly adjusting their instruments’ pitch. This algorithm takes the advantage of being simple as it does not need some information like the gradient of the objective function.
However, the HS may have slower convergence rates than other optimization techniques, especially in complicated and high-dimensional search spaces. This can have an influence on both the algorithm’s performance and efficiency. Fine-tuning factors such as harmony memory (HM) size, pitch adjustment rate, and bandwidth can be difficult to determine and may need extensive trial and error in a number of problem areas.
HS was originally created to solve continuous optimization challenges. Adapting it to address discrete or combinatorial optimization problems may need additional techniques or adjustments. Furthermore, the quality of the initial HM can dramatically impact the algorithm’s effectiveness.
In this optimization process, there are 3 factors: harmonic memory (HM), pitch adjustment rate (PAR), and distance bandwidth (BW). Besides these 3 factors, the size of the HM and the number of improvisations (NI) are considered factors. Having been randomly generated, the primary population of harmony vectors is stored in HM. Later, new harmony candidates are generated using all the solutions in the HM. This is done by the memory consideration rule, pitch adjustment rule, and random reinitialization. In the end, the new candidate harmony is compared to the worst harmony vectors to update the HM. If the worst harmonic vector is better than the worst harmonic vector in HM, it is replaced by a new candidate vector. This is repeated until the desired criteria are achieved. Basically, the HM algorithm includes 3 fundamental stages: initialization, harmony vector improvisation, and HM update. All these stages are elaborated on as follows [9]:
Step1. Initialize the optimization problem and algorithm parameters.
Step2. Initialize the HM.
Step3. Improvise a new harmony from the HM.
Step4. Update the HM.
Step5. Repeat Steps 3 and 4 until the termination criterion is satisfied. Figs. 1 and 2 show the Harmony Search flowchart and pseudocode, respectively.
Fig. 1. Flow chart of the harmony search algorithm.

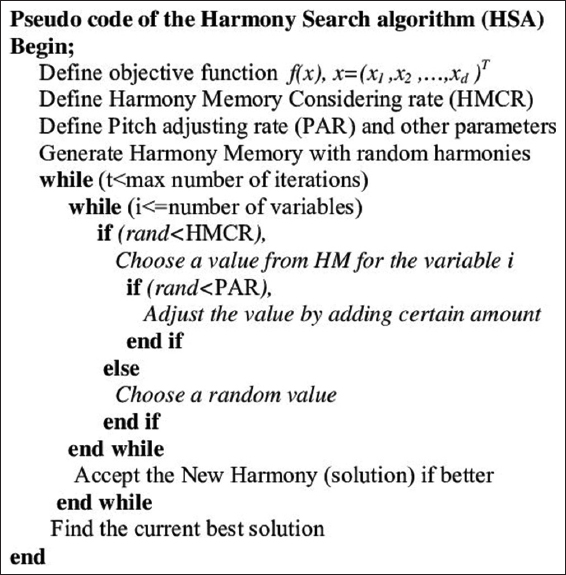

Fig. 2. Pseudocode of the harmony search algorithm.
2.2. Cuckoo Search (CS)
The new metaheuristic algorithm called Cuckoo Search (CS) is intended to solve optimization-related problems that align with the cuckoo species’ distinctive parasitic behavior, predatory flight behavior, and fruit fly. However, CS, like any algorithm, has restrictions, such as requiring several parameters, such as the cuckoo population size, the chance of egg laying, and the step size for random walks. These parameter choices might have an impact on the algorithm’s performance, thus obtaining the best values may necessitate some tinkering. Furthermore, balancing exploration and exploitation is a prevalent problem in optimization algorithms. The basic Cuckoo Search algorithm may not completely use historical data or previous iterations to steer the search. Improved memory and learning techniques may be required to improve the algorithm’s performance.
In particular, each egg in CS represents a new solution; the cuckoo’s flight determines its walking steps, and the objective is to replace an unsuccessful solution in the nest with an optimal and better one. That is, an egg is in every nest. The technique can be extended to more complicated scenarios in which there are numerous eggs in each nest (and thus numerous solutions). For instance, equation (1) below is used to carry out the Levy flight when creating a new solution x(t+1) for Cuckoo I.
The step size associated with the problem scales under examination is represented by α > 0 in equation (1) above; in most circumstances, α = 1 can be utilized. The product ⊕ denotes entry-wise multiplications, whose product is comparable to the PSO; however, because the length of the step is greater in the long run, the random walk-through Levy flight performs better in terms of search step exploration. Equation (2) essentially depicts a random walk that is provided by the Levy flights:
The above equation (2) is an infinite variance, having an infinite mean. Figs. 3 and 4 demonstrate the flowchart and the pseudocode of Cuckoo Search.

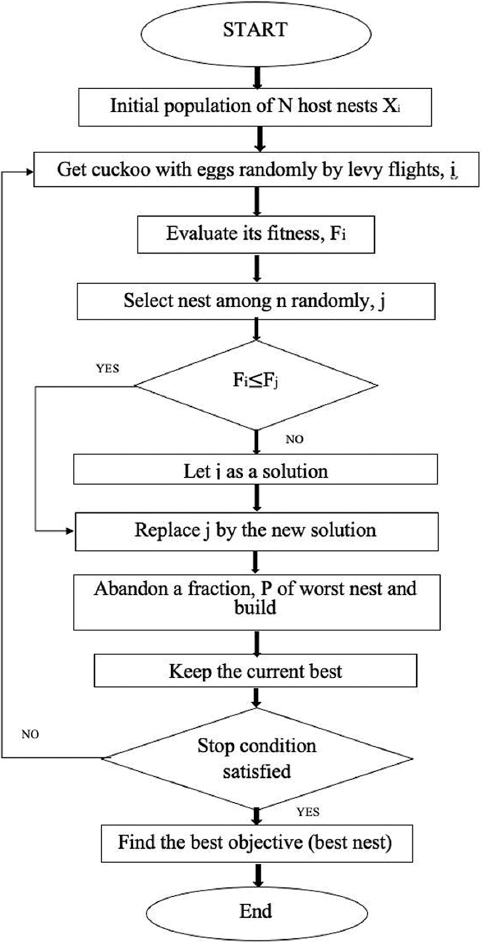

Fig. 3. Cuckoo algorithm flowchart [10].

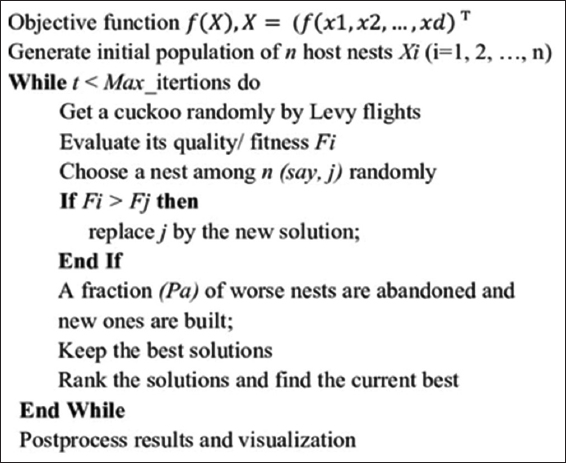

Fig. 4. Pseudocode of the Cuckoo search algorithm
3. PROPOSED METHOD
Efficiency has turned into an indispensable desired quality in today’s world. Therefore, almost all manufacturers strive to gain the highest efficiency possible. As a result, optimization is now valued and wanted more than ever. The ultimate goal is to seek the optimal values of some decision variables to achieve the best solutions to deal with some optimization problems. Instead of using the traditional method of creating and initializing the population of harmony vectors at random and storing them in the HM, the proposed method uses Cuckoo Search, which offers both local and global search to find the best solution. Thus, local solutions are maintained thanks to the harmony search algorithm’s HM and pitch adjustment rate. The steps that follow introduce the key steps.
Step 1: Initialize the optimization problem and algorithm parameters.
Step 2: Using CS to Initialize the HM.
Step 3: Improvise a new harmony from the HM.
Step 4: Update the HM.
Step 5: Repeat Steps 3 and 4 until the termination criterion is satisfied.
Figs. 5 and 6 show the CSHS flowchart and pseudocode.

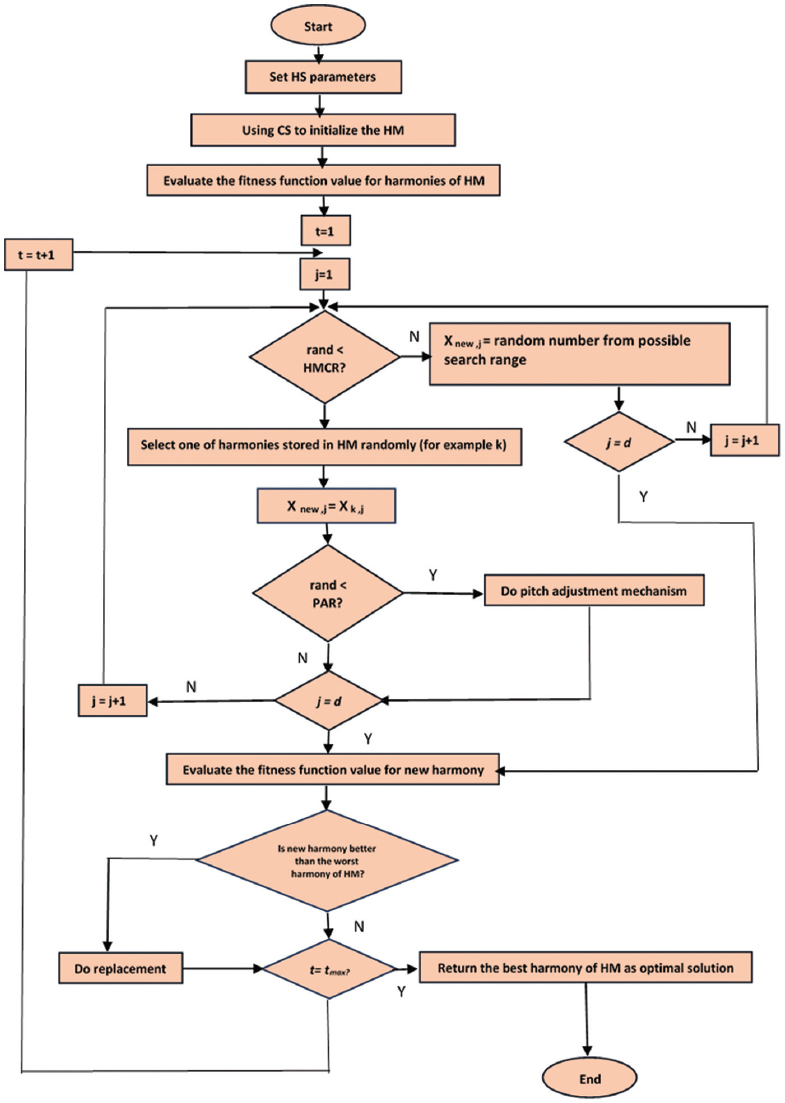

Fig. 5. CSHS flowchart.

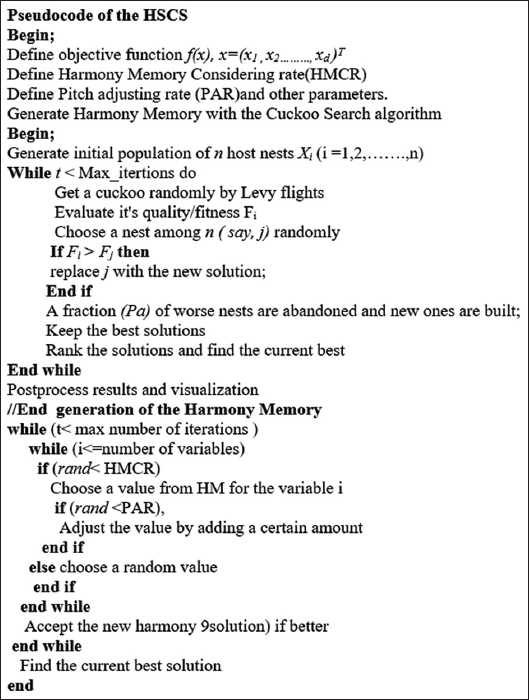

Fig. 6. Pseudocode of the HSCS algorithm.
4. EXPERIMENTAL SETUP AND RESULT
4.1. Experimental Setup
In this part, the studies that were carried out to determine and evaluate the performance of the proposed hybrid harmony algorithm and its variations are described for several analytical benchmark functions. Where it is applied to 8 minimization and maximization standard benchmark functions [11] as detailed in Table 1, Dimension (n) and Range are the feasible bound of function, respectively. To have a balanced outcome, all the possible methods are used in a computer equipped with a Windows 10 OS, an Intel(R) Core (TM) i5-8350U CPU @ 1.70GHz 1.90 GHz, and Python used as a programming language.

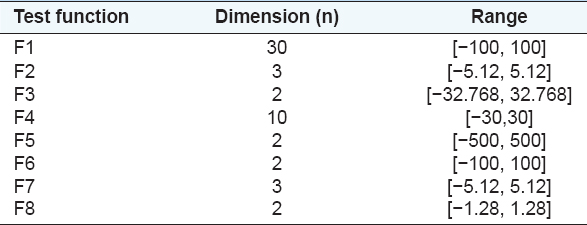

TABLE 1: Numerical benchmark functions
1. SpShpere (n variables) (F1):
Where:
a= 20
b = 0.2
c = 2*π
4. Rn Rosen Brock (F4):
6. Step Function (F6)
7. Generalized Restringing’s Function (F7)
8. Quadric (F8)
4.2. Experimental Result
The performance of CSHS on 8 benchmark functions is compared to 3 other approaches called BA, CS [12], HS [13], [14] to verify its performance. The results of the benchmark functions used in this experiment are illustrated in Table 2. Here, n shows the function dimension and min and max represent minimum value and maximum value, respectively.
TABLE 2: Summarize results for all benchmarks
This research considers the time component in addition to all the information displayed in Tables 2-10, where different numbers of iterations have been applied to the optimization methods.

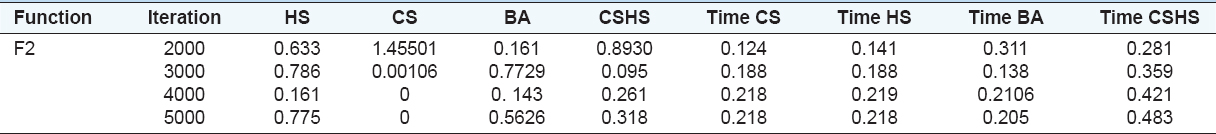

TABLE 3: The average of the best value on F2 benchmark function with the iterations 2000,3000,4000,5000

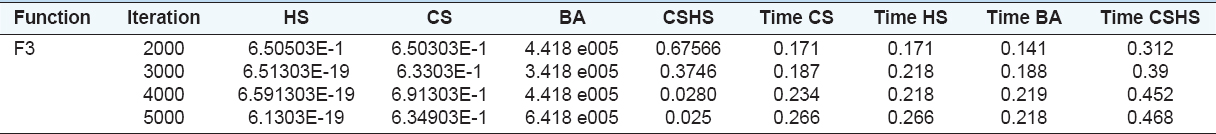

TABLE 4: The average of the best value on F3 benchmark function with the iterations 2000,3000,4000,5000
TABLE 5: The average of the best value on F4 benchmark function with the iterations 2000,3000,4000,5000

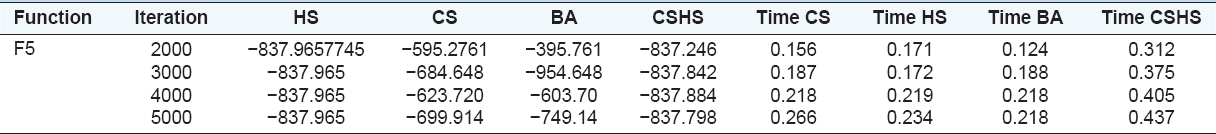

TABLE 6: The average of the best value on F5 benchmark function with the iterations 2000,3000,4000,5000

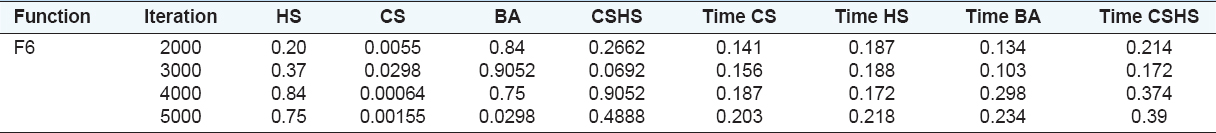

TABLE 7: The average of the best value on F6 benchmark function with the iterations 2000,3000,4000,5000

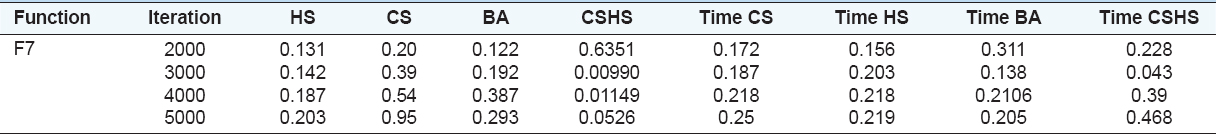

TABLE 8: The average of the best value on F7 benchmark function with the iterations 2000,3000,4000,5000

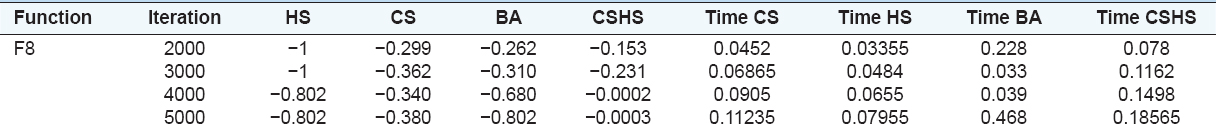

TABLE 9: The average of the best value on F8 benchmark function with the iterations 2000,3000,4000,5000

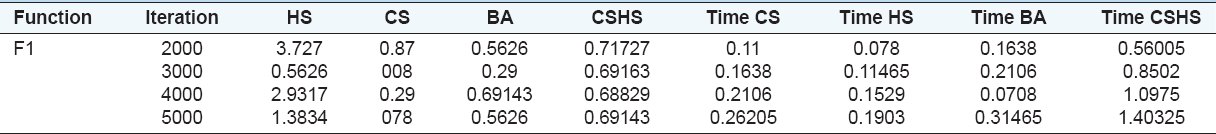

TABLE 10: The average of the best value on F1 benchmark function with the iterations 2000,3000,4000,5000
In addition, the most representative convergence curves are provided (Figs. 7-10). The values in the figures represent the average functional optimum, with being the true value. From Fig. 7, we can see that HSCS is better at finding solutions than any other method, especially in F1, F2, F5, and F8.

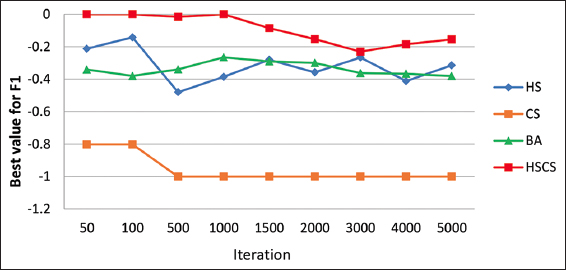

Fig. 7. The Performance of HS, CS, BA, HSCS on test function F1.

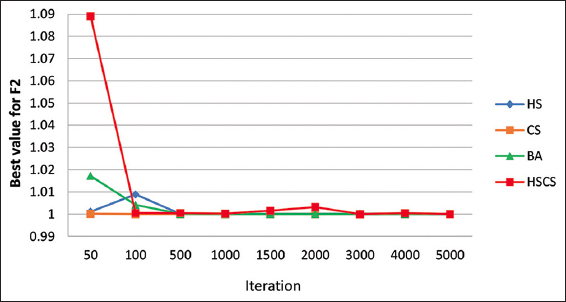

Fig. 8. The Performance of HS, CS, BA, HSCS on test function F2.

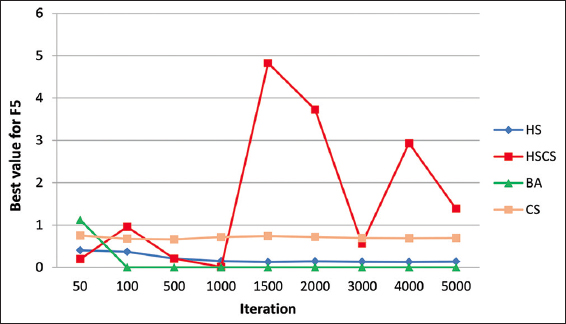

Fig. 9. The Performance of HS, CS, BA, HSCS on test function F5.

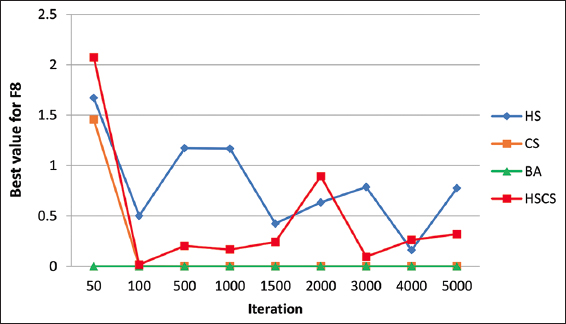

Fig. 10. The Performance of HS, CS, BA, HSCS on test function F8.
5. CONCLUSION
The CSHS algorithm outperformed the other three classical optimization algorithms, CS, BA, and HS, in terms of obtaining the best value or minimum values in the majority of the benchmark functions, as can be seen from the tables above and Table 2’s results. This is because the proposed algorithm completed local searches more quickly than the other two classical algorithms. The primary advantage of Cuckoo Search is that it requires relatively few parameters – just one, the probability function – and the population size. In comparison to other metaheuristic algorithms, this makes the Cuckoo search algorithm highly straightforward and efficient. It enhances the process by merging HS and CS.
ACKNOWLEDGMENT
The authors would like to acknowledge the Sulaimani Polytechnic University, Qaiwan International University, and Kurdistan Technical Institute for their financial support of this research. Thanks also go to the reviewers of this paper for their constructive comments.
DATA AVAILABILITY
All data included in this study are available on request by contact with the corresponding author.
CONFLICTS OF INTEREST
The authors declare that there are no conflicts of interest regarding the publication of this paper.
