An Effective Computer-aided diagnosis Technique for Alzheimer’s Disease Classification using U-net-based Deep Learning

1. INTRODUCTION

Today, due to the advancements in the fields of biomedical engineering, data acquisition techniques, and data analytics, Computer-aided diagnosis (CAD) systems are used across almost all the fields of medicine [1], and one of the prevalent diseases in medicine fields is the progressive neurodegenerative disorder brain atrophy Alzheimer’s disease (AD) [2], which is characterized as a most common neurological disorder that ultimately triggers an irreversible decline in cognitive function sciences [3], because it is a very multifaceted ailment that reasons brain disappointment, then ultimately, dementia ensues. It is a global health problem. (99%) of clinical trials have failed to limit the progression of it [1]. The calculated annual fee of dementia is predicted to be a trillion US dollars and is predicted to double by 2030 [4]. According to the World Health Organization (WHO) report, more than 55 million people suffer from dementia worldwide, and more than (60%) of them live in low- and middle-income and learning countries. Every year, there are approximately 10 million new cases [5], and by 2050, it is expected to reach 13.8 million [4]. This indicates that the prevalence of this disease will increase by more than (200%) over the next 15 years [6].

As illustrated in Fig. 1, AD has five stages: (1) AD dementia with severe symptoms, then (2) Late Mild Cognitive Impairment (LMCI), (3) Mild Cognitive Impairment (MCI): which is a condition that precedes dementia but does not meet the criteria for a diagnosis of AD, (4) Early Mild Cognitive Impairment (EMCI), (5) Cognitively Normal (CN): pre-clinical dementia, which is classified by the symptom-free period that occurs between the initial brain lesions and the onset of the first symptoms [7].

Fig. 1. Samples of magnetic resonance imaging images representing different Alzheimer’s disease (AD) stages. (1) AD, (2) Late mild cognitive impairment; (3) Mild cognitive impairment, (4) Early mild cognitive impairment, (5) Cognitively normal.

The indications of AD typically evolve slowly and gradually, and also patients may show various symptoms at cognitive and behavioral levels; therefore, it can be difficult and complex to diagnose AD. Within this framework, developing innovative diagnostic tools to help diagnosing the disease at an earlier stage is a challenging task. In this context, there has been growing interest in using CAD systems for automatic detection of AD [8]. A variety of CAD approaches have been proposed for the early diagnosis of various stages of AD using Magnetic resonance imaging (MRI) [9], recently provided a non-invasive imaging approach that can detect subtle morphological changes in the brain [3]. MRI-based atrophy measurements are considered valid markers of disease state and progression since atrophy seems to be an inevitable and intrinsic factor of progressive neurodegeneration. Moreover, changes in structural measures, such as ventricular enlargement, entorhinal cortex, whole brain, and temporal lobe volumes, can be associated with modifications in cognitive performance [7]. MRI scans provide detailed insights into blood circulation and cerebral processes. Still, they cannot detect brainwave activity or facilitate communication between tumor cells [8], in addition, dissimilar X-rays, MRI does not emit ionizing radiation, so it can be considered a valuable opportunity to track the development of AD and monitor the effectiveness of treatment [10]. With the development of artificial intelligence (AI) and the great progress in the field of computer vision and deep learning (DL) over the past years, CAD applications in the medical field have become widespread and play an important role in diagnosing diseases, including the subject of our research (AD) [11]. In CAD systems, DL is now making great strides in medical image analysis [12]. DL has increased importance in medical image analysis, driving the pursuit of AI in medical imaging, which is widely accepted for pattern recognition, primarily due to their unique feature of being trainable as a complete program [8]. A huge number of articles and researches have been published through the internet about attendance and the importance of DL in medical images, these ideas and approaches have included individually or mixed (characterization, detection, segmentation, registration, and classification). In the field of medical imaging, especially in the analysis of AD, there is a well-known trend of merging DL models with node segmentation models include several network architectures, such as convolutional neural network (CNN), which are the furthermost used, VGG16, ResNet, U-Net, Mask R-CNN, etc. [13]. The human brain has a structure with many unique features that can be extracted by different CNN models [14]. U-net is one of the greatest prevalent network constructions used typically for segmentation [15], because it is a semantic segmentation network that is constructed on the full CNN, and was sophisticated in 2015 for the processing of medical images [16]. Instead of using single pixels to diagnose disorders, such as Alzheimer’s, trends across regions of interest must be analyzed. Pixel-level image quality should be strong, with enough contrast and spatial resolution to reliably identify diseased or anatomical characteristics. The study’s minimal pixel quality should be in line with the requirements of the imaging modality. Pixels of poor quality may produce noise or artifacts that jeopardize the diagnostic results and model reliability. Along with advancing quality control measures, these permits employing the measurable features of impairment (area, direction, etc.). This also makes it probable to well understand the tincture of impairment and develop phases to disregard it. To realize this, the U-Net neural network offers for the semantic segmentation of images, where each image pixel is classified as belonging to one of the damaged classes, or to the undamaged part.

2. RELATED WORK

In this part of our article, we will try to provide a comprehensive review of the articles conducted during the past 5 years that is similar to the same topic of our study. Xia et al. 2020 [17], proposed a new combined CNN framework for AD detection, and mutually 3D CNN and 3D convolutional long short-term memory (3D CLSTM) were used. They exploit a 3D CNN consist of 6 layers to learn instructive features first, then 3D CLSTM is increased to additional extract the channel-wise higher-level information. The model applied on AD Neuroimaging Initiative (ADNI) dataset and achieved (94.19%) of accuracy rate. Murugan et al., in 2021 [18], employed a DEMentia NETwork (DEMNET) with CNN to extract the discriminative features contained (4) core phases: pre-processing data, balancing dataset consuming Synthetic Minority Over-sampling Technique (SMOTE), Splitting dataset, and classification using DEMNET to detect the dementia stages from MRI obtained from Kaggle using the ADNI dataset to predict AD classes. The proposed DEMNET achieved an accuracy of (95.23%) and an area under curve of (97%). Zhu et al. also in 2021 [19], proposed a Patch-Net to generate local illustrations from the brain MRIs. They developed an attention-based pooling block for features mixture and completely -associated layers assisted for final calculations. Their model investigated on ADNI dataset, and they obtained the best result was (92.40%) of accuracy rate. Furthermore, in 2021, Shoaip et al. [20], used the ADNI dataset and aimed to propose an interpretable approach to detect AD based on AD diagnosis ontology and the expression of semantic web rule language, by applying an ontology-based method that employs (3) diverse machine learning algorithms, such as random forest, JRip, and J48, after excluding features with a high percentage of missing data, such as DIGITSCOR, AV45, ABETA, TAU, and EcogSPTotal. The proposed classifiers achieved an accuracy of (94.1%) and a precision of (94.3%). Helal et al. in 2022, used the ADNI Medical Image dataset and proposed a main objective framework with DL-AD (DL-AHS) based on the U-Net architecture and estimated using the Processing, Analysis, and Visualization technique. They anticipated two architectures for left and right HC segmentation from other brain sub-regions. First utilized simple hyperparameters tuning in the U-Net (SHPT-Net) and the second employed a transfer learning technique in which the ResNet blocks are used in the U-Net (RESU-Net). The result achieved a performance (94.34%) of accuracy rate [21]. In 2023, Noh et al. [22], employed spatial and sequential feature extractors, utilized the former U-Net construction in extraction, after that used LSTM to extract temporal features, and executed (4)-step pre-processing to eliminate noise from the fMRI images. In their trained approach, they qualified each of the (3) models by fine-tuning the time measurement. Finally, they revealed an average (96.4%) of accuracy when consuming (5)-fold cross-validation. Furthermore, in 2023, Chen et al. [23], proposed a model that directly modeled the brain’s organizational networks from DTI. They linked the permanent toolkits, Brain Diffuser, and thwarted additional operational connectivity features and disease-related information by investigating differences in structural brain networks across subjects. They achieved an accuracy rate of (87.83%), Precision (87.83%), Recall (92.66), and F1-score (87.83). In the same year, Bhosale et al. 2023 [24], used a U-Net Convolutional Network-based approach to segment AD from ADNI 2D brain MRI images. By implementing a series of convolutional functions using a (3 × 3) filter as the initial design of the U-Net, they used a mixing technique of minimum pooling and average pooling as a hybrid pooling instead of using only maximum pooling. Finally, their updated approach clearly outperformed the original U-Net model, achieving an impressive performance of (91.23%) accuracy. Gupta et al. in 2024 [2], conducted an organized evaluation to investigate the estimation of AD on existing toolkits in the ADNI dataset using the Preferred Reporting Item for Systematic Review and Meta-Analysis strategies using ADNI dataset and presented AD Detection Network employment, They achieved results: an accuracy rate of (94.33%), Precision (90.4%), Recall (90.3%) and F1-Score (91.2%). Firdos et al. in 2024 [25], explored the effectiveness of CNN constructions, such as UNet, LeNet, and GoogLeNet, and revealed that the CNN model achieved the highest accuracy, with LeNet achieved an accuracy of (97%), UNet at (94%), and GoogLeNet at (51%), using ADNI dataset images. These focus attention on the potential of DL to improve the detection and classification of AD and prepare early interferences and individual care effortless. The promising results from the CNN model’s highpoint, their ability to convert the clinical technique to Alzheimer’s, highlighting the importance of technical developments in addressing this incapacitating state. Table 1 below summarizes the related works, and describes (Dataset, Pre-processing, model training, feature extraction, classification, and results).

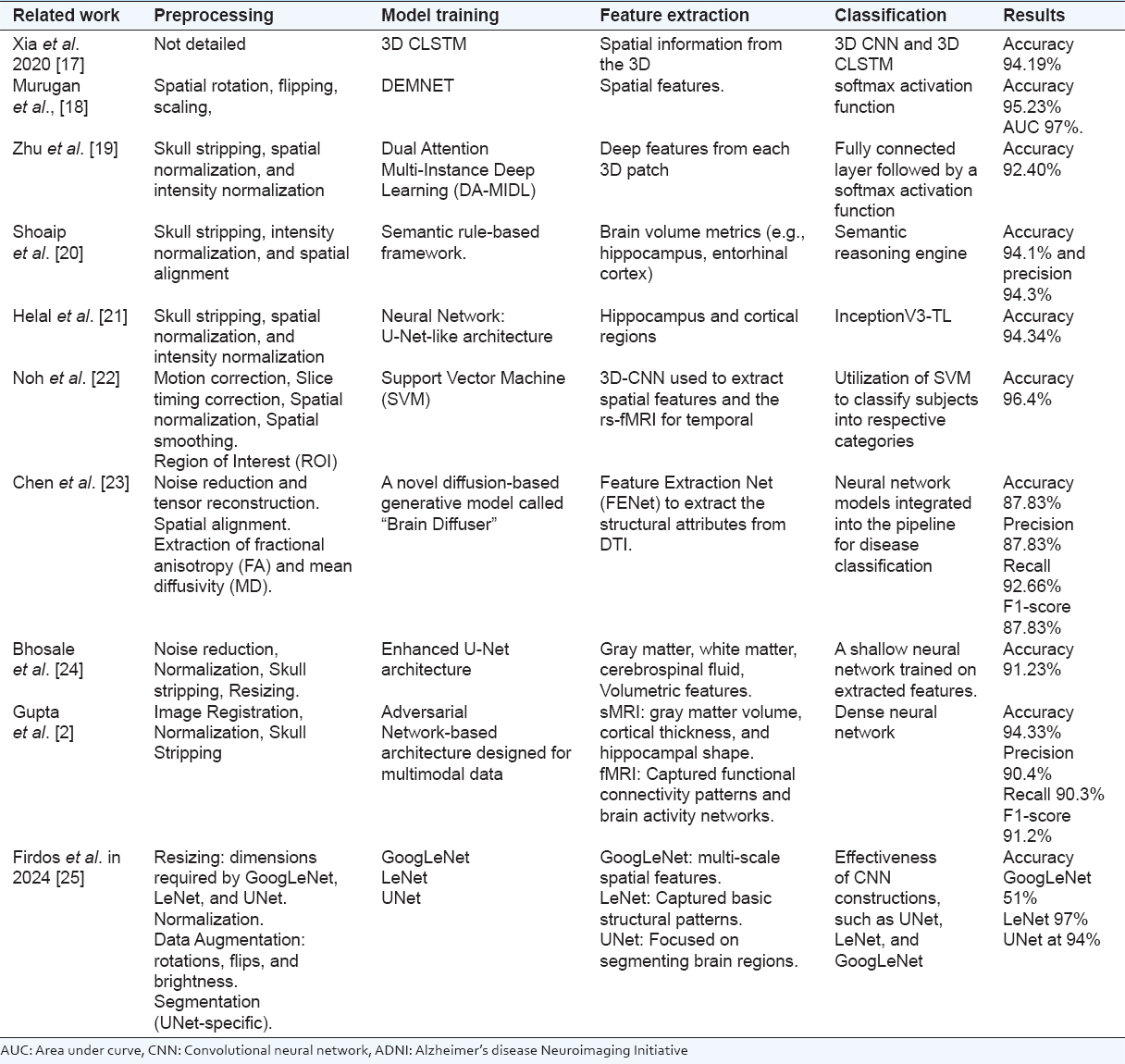

TABLE 1: Summary of related works (They all used the ADNI dataset)

3. PROPOSED METHOD

In this study, we proposed a hybrid image classification approach (U-Net CNN) to classify the five pre-determined classes of AD. The method was divided into several stages: image pre-processing, feature extraction, and DL-based classifications as shown in Fig. 2 below.

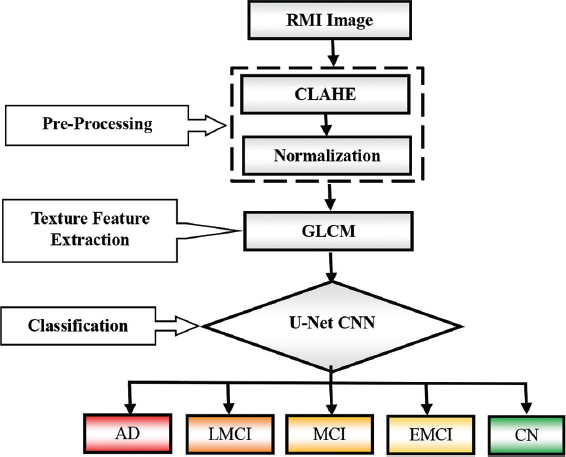

Fig. 2. The block diagram of the proposed approach.

3.1. Pre-Processing

To reduce the (time requested and the learning difficulty) of the proposed model, we increased the contrast level of the images and then we normalized them which is very necessary for detecting and classification of AD cases. This pre-processing stage included two steps:

• a. Using contrast limited adaptive histogram equalization (CLAHE) which performed to enhance the contrast of specific ranges by adjusting the intensity levels according to local histograms [26], as shown in Fig. 3. This leads to additional detailed illustration of the crucial structural features of and improve our technique.

• b. There are several types of normalization, such as intensity normalization (IN), spatial normalization, Z-score normalization, and numerical normalization. That can be used to remove some variations in the data, such as different subject pose or differences in image contrast, to simplify the detection of subtle differences [21]. In our proposed model, IN was used, where the pixel intensity values of the images are normalized to the range [0, 1] by dividing the pixel values by 255. This kind of normalization confirms that the input data has steady intensity levels, refining convergence throughout training and making the model fewer sensitive to variations in input brightness. Fig. 4 illustrates the result of normalizing on the same images that used in Fig. 3.

Fig. 3. The effect of applying CLAHE on the images and raising the contrast value.

Fig. 4. Normalizing images to the range [0,1].

3.3. U-net-based DL Framework

Among various network models, U-Net stands out as the most widely used encoder–decoder model for medical image segmentation [28]. U-net is a neural network model that is usually used for medical image segmentation and its performance has become the baseline for most medical image semantic segmentation tasks. Fig. 5 below demonstrates the universal construction of a basic U-Net neural network [29]. It is proportion and contains two main portions: the compression (i.e. the encoder: left), and the expansion (i.e. the decoder: right). The compression part is a typical CNN structure, contain recurrent convolutions with a (3 × 3) kernel, followed by rectified linear unit (ReLU) operations and max pooling, and with each down-sampling procedure, there is a doubling of feature maps. At the end of each up-sampling, convolution is applied using a (3×3) kernel and a ReLU activation function. As a result of the up-sampling, new pixels are inserted between the existing ones, until the image reaches the wanted size. The final layer uses a 1×1 convolution, which schemes each feature vector onto the anticipated number of classes.

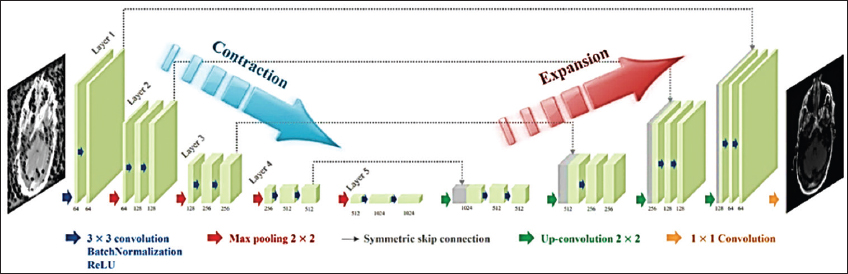

Fig. 5. U-shaped structure of the U-Net neural network [30].

Thus, a Hybrid Framework of a U-net-based CNN style model is proposed for the diagnosis of AD. The core features of the U-net neural network comprise skip connections and a U-shaped structure with symmetrical encoders and decoders. The U-net executes down-sampling operations through the encoder to gain high-level semantic features and up-sampling operations through the decoder to correspondingly restore the high-level semantic feature map to the original image determination. At the same time, the network structure mixes the improved feature with the low-level features through skip connections, which helps the model not only learn the semantic features from MRI scans but also motivates the model to pay attention to the original subtle features. The classification of the images is performed using a hybrid approach, where texture features are learned by a custom U-Net-based CNN. The proposed hybrid framework U-Net-based CNN is applied based on the default U-Net architecture as shown in Fig. 6. It consists of ten layers:

• 1) Input Layer: Accepts pre-processed image data and texture features (GLCM) as inputs.

• 2) Down-sampling (encoding layer) involved 2 blocks, and each block: Applied (conv2D (32) filters, kernel size = (3,3), activation= “ReLU”, padding = “same”) to reduce feature map dimensions by half and use Max-Pooling 2D (Pool size (2, 2), to reduces spatial dimensions.

• 3) Bottleneck layer to compress features to the smallest spatial representation Applied (conv2D: High-dimensional (128) filters and Dropout as a Regularization to reduce overfitting.

• 4) Up-sampling (decoding layer) with Size (2, 2) involved 2 blocks, and each block: Applied (Conv2D: 64 filters, kernel size (3, 3), padding = “same”, Skip Connection: Concatenate with corresponding encoder block, Conv2D: 64 filters, kernel size (3, 3), padding = “same”)

• 5) Fusion with GLCM features (Process GLCM texture features using a Dense layer (64 neurons), then combining processed GLCM features with the decoder output through concatenation.

• 6) Output layer, applied (conv2D layer with filters = number of classes and activation= “softmax” to produce class probabilities.

• 7) Compilation (loss function and optimizer) layer, involved: (a) Loss Function: categorical cross-entropy, multi-class classification, (b) Optimizer: Adaptive Moment Estimation optimizer, learning rate=1e^-4, (c) Metrics: Accuracy, Precision, Recall, and F1-score for performance evaluation.

• 8) Hybrid framework layer: combining spatial (U-Net-based) and texture (GLCM-based) features for classification, the objective was to leverage both spatial features (via CNN) and handcrafted descriptors (via GLCM) and the benefit was to improves classification by capturing complementary patterns, enhancing Alzheimer’s detection accuracy.

• 9) Training the CNN: Pre-processed images and GLCM features are passed through the model, and Labels are one-hot encoded for multi-class support, then Train using augmented data (Techniques include rotation, shifting, and flipping) to improve generalization.

• 10) Optimization method: used Adaptive Moment Estimation optimizer (Adam) optimizer with adaptive learning rates to ensure smooth convergence during training.

• 11) Training parameters: Define epochs (20) and batch size (defined implicitly by the fit method) to balance speed and convergence.

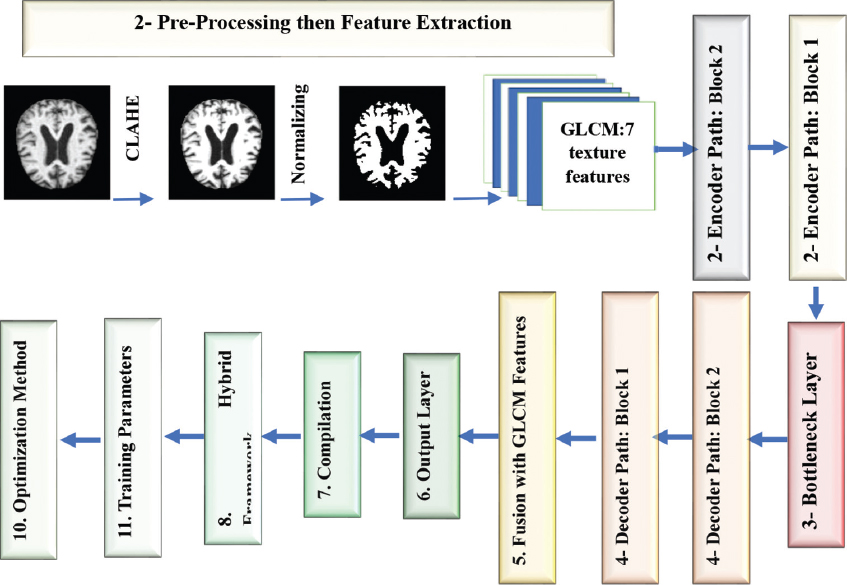

Fig. 6. The proposed hybrid framework U-Net-based convolutional neural network architecture.

4. EXPERIMENTAL RESULT

4.1. Dataset

A Novel Image Casting and Fusion for Identifying deep Information utilized in this paper was gained from the ADNI information base (www.kaggle.com/datasets/kaushalsethia/alzheimers-adni) which is a comprehensive and widely used collection of MRI images format. ADNI inspires a direction for scientific researchers to main robust investigation and offer feasible evidence with different predictors around the world. The dataset contains a total of 18775 imaging sessions in which the patients or individuals are categorized into two groups (testing and Training) as shown in Table 2 below, and each group had alienated into five classes that are: AD, LMCI, MCI, EMCI, and CN.

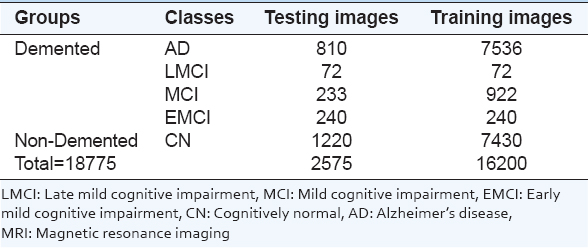

TABLE 2: Total 18775 MRI images in ADNI classified into different AD categories

4.3. Performance Evaluation

As a baseline DL method, we first assessed the CNN model without and then after pre-processing, the findings are shown in Tables 3 and 4.

TABLE 3: CNN results without pre-processing

TABLE 4: CNN results after pre-processing

Next, we evaluated the U-Net model’s performance independently after pre-processing, as indicated in Table 5.

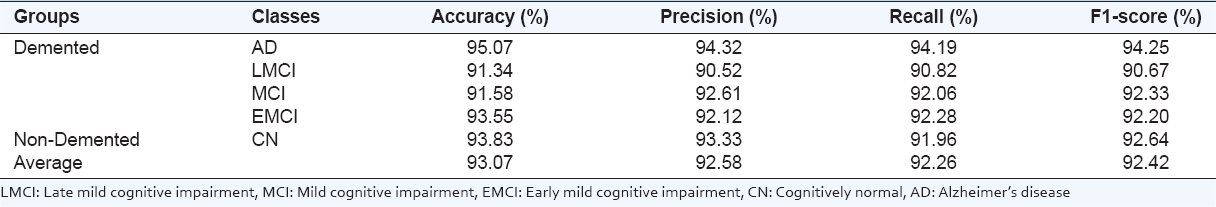

TABLE 5: U-Net model’s performance after pre-processing

Finally, the hybrid approach, which combines CNN and U-Net, was then used to examine the possible advantages of this integration. Table 6 displays the final results for the four metrics are detailed with the final average for each metric for the five categories in the ADNI dataset.

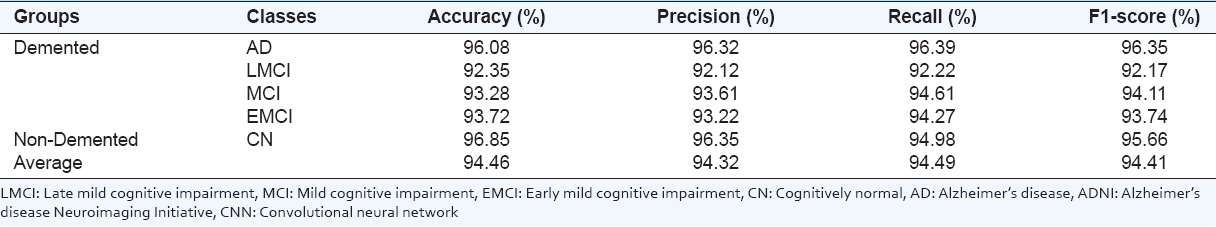

TABLE 6: The final results from the five categories in the ADNI dataset using U-netbased CNN

4.4. Models Validation

To validate our technique and ensure the segmentation effect of the proposed hybrid U-Net framework model, other four models, including FCN, SegNet, Resnet, and Densenet were tested on the same prepared dataset, the results in Table 7 showed the strength of our proposed model.

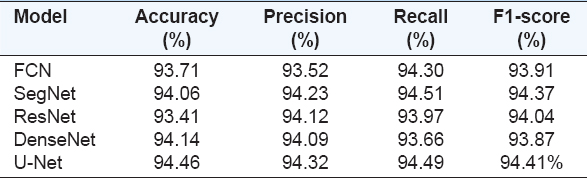

TABLE 7: Comparative six models experimental results

4.5. Performance Comparison

More tests were conducted to evaluate our suggested technique’s performance by comparing it with other techniques. Our suggested hybrid technique achieves the greatest performance (accuracy, precision, recall, and F1-score), as shown by the findings in Table 8. Some of certain cells are left blank since all of the most recent methods either tested their strategy only in terms of accuracy or combined accuracy with recall or F1-score.

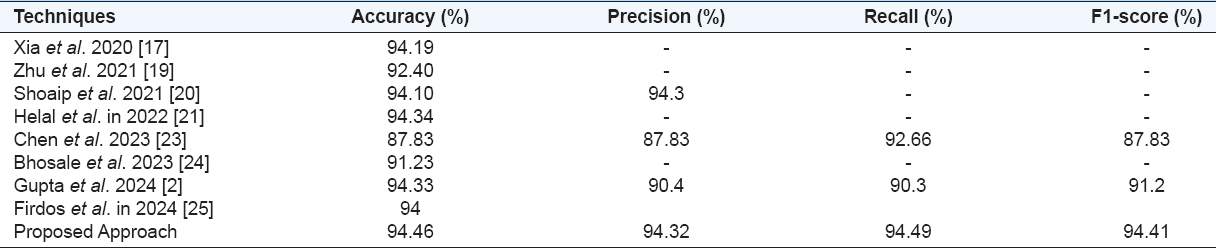

TABLE 8: Accuracy rate of other approaches with the same ADNI dataset

5. CONCLUSION

Even though DL was initially successful in clinical practice, there are still difficulties in identifying complicated lesions and many intersecting diseases, which calls for the development of more DL-based approaches. When it comes to clinical intelligence-guided decision-making, these analytical endeavors include identifying barriers, creating prediction models, and other essential components that form the basis. The effectiveness of the U-net CNN model was demonstrated by obtaining final average results for the four measures: accuracy (94.46%), precision (94.32%), recall (94.49%), and F1-score (94.41%) as overall rates. The experiment results demonstrate that skip connections and deep supervision can improve the classification model’s performance. The U-net CNN model was applied to RMI images from the ADNI dataset, which specializes in AD diagnosis.
