Enhanced Integer-Based Homomorphic Encryption Scheme with Windowing Mechanism for Securing Electronic Health Records

2.1. Data Security and Privacy Challenges

In multi-party environments such as the cloud, all parties are at risk of threats, whether the provider or the user. Therefore, the minimum requirement for data security is to be stored in its encrypted state [8]. Customers are very concerned about the content of data sent to the cloud or stored in the service provider’s servers because it is easily accessible to service providers. If digital records are handled in a way that ensures their privacy during acquisition, storage, and computing, then complete privacy has been achieved. However, while privacy can be achieved during acquisition and storage, achieving privacy is challenging during processing [2].

2.2. Homomorphic Encryption as a Solution

When encrypted data are required to be used, it must be decrypted, which exposes it to risk at that moment, so homomorphic encryption is a solution to ensure its privacy and security [2]. Fully homomorphic encryption (FHE) is one of the most widely adopted encryption techniques, focusing on privacy at the highest levels [9]. This technique focuses on two aspects: data encryption and the ability to handle data that has been encrypted through mathematical operations without the need to decrypt it, thus ensuring its complete confidentiality.

The main types of homomorphic encryption schemes are divided according to the number and type of operations into Partial, Somewhat, and Full. In Partial, only one operation, either addition or multiplication (not both), is applied to the encrypted data an unlimited number of times. Examples of these are Rivest-Shamir-Adleman (RSA), ElGamal, and Paillier. In Somewhat, a limited number of mathematical operations are applied to the encrypted data a limited number of times. Finally, the full technique involves both addition and multiplication utilized simultaneously and an unlimited number of times [10].

As for the functions and use cases, the benefit of FHE is that it supports functions, such as searching, sorting, max, and min. However, despite the proposed attempts that have improved the efficiency and performance of FHE schemes, it is still difficult to implement them in a real service without disturbing the user. Although somewhat homomorphic encryption or leveled-FHE has achieved acceptable performance in some applications, the bootstrapping techniques still need improvement, as do the multiplication operations, which negatively affect performance [10]. Due to this feature, data encrypted with this technique can be handed over to third parties to perform any meaningful operation [3].

2.3. Related Work

In certain cases, user data becomes vulnerable, such as during pandemics when patients cannot reach hospitals, so they contact doctors using technology over the network to obtain information about the diagnosis [11]. This is done remotely through the presence of devices that provide accurate medical data and support the Internet of Things, which can then send readings of blood pressure, oxygen, temperature, etc. [12]. Carpov et al. developed a mobile application that encrypts users’ data with a FHE algorithm and transmits it to the cloud [9]. Their implementation focused on analyzing and evaluating cardiac risk factors in the cloud by processing encrypted health data uploaded in a secure and privacy-preserving manner. They processed the data exchange between the doctor and the patient through an architecture that enables the patient to grant authorization to the doctor to access the results through a private FHE key.

Based on the increasing need for secure remote healthcare during pandemics, Kumar et al. proposed a hybrid approach of multi-party computing and homomorphic encryption to secure health data [11]. Their model addressed the aspect of secure architecture that ensures the results between the patient and the doctor. This prevents eavesdropping across different systems’ entities and ensures trust among the patient community. They achieved the partial homomorphic encryption approach by adopting the Paillier encryption scheme. Despite the security, reliability, and patient-centric approach, it is relatively slow due to processing long ciphertexts instead of plain data.

Scheibner et al. presented a system that combines homomorphic encryption and secure multiparty computation to address the limitations of traditional approaches to enhancing privacy during medical data sharing [13]. The authors developed a new homomorphic multiparty encryption approach that enables secure, flexible processing while meeting data anonymization and legal requirements under the General Data Protection Regulation (GDPR). This is done by efficiently transitioning between homomorphic encryption, represented by local computation, and interactive protocols, defined by multiparty computation. Their analysis showed that homomorphic multiparty encryption provides an effective solution compared to using the two techniques alone, and they acknowledged the limitations of computational complexity as one of the drawbacks of full homomorphic encryption.

Guo et al. stated that privacy issues exist in the model training and the pre-diagnosis stage in machine learning [14]. They designed a pre-diagnosis scheme that provides healthcare services using logistic regression called Privacy-Preserving Online Medical Pre-diagnosis in a privacy-preserving manner by employing homomorphic encryption techniques. A homomorphic encryption scheme called Boneh-Goh-Nissim was applied to protect the confidentiality of the feature vector x and the pre-diagnosis model ω. Their analysis showed that the proposal resisted security threats and privacy concerns. Furthermore, it is efficient and cost-effective regarding computational and communication burdens [14].

Anwar and Salman proposed a FHE algorithm to protect data privacy on the cloud based on a Super-increasing Sequence. Each character in the plaintext is converted to its American Standard Code for Information Interchange (ASCII) code and encrypted using the C = S (2 × q × r) + m algorithm to produce a ciphertext. They added r as a random value for the noise added to the ciphering process and evaluated the randomness through well-known National Institute of Standards and Technology (NIST) tests [15]. Their research results showed that their algorithm performs better than other proposed algorithms, as it can encrypt larger files. As for security, a super-increasing sequence with a subset sum problem that was used provides high security. However, they faced challenges regarding the encrypted file’s size, which is larger than the plaintext file. Furthermore, the decryption process takes longer than the encryption process [15].

Sinha et al. proposed a privacy-aware surveillance system that ensures secure patient data sharing, leading to timely and effective responses to crisis scenarios (e.g., the COVID-19 pandemic). The proposed new encryption mechanism is based on a fully homomorphic and secure encryption scheme using the ElGamal algorithm. The effectiveness of the contact tracing method was analyzed, and the results showed that the proposed solution effectively provides security and adequate support for the computational needs of contact tracing [16].

Mohammed and Abed proposed a FHE algorithm that uses n prime numbers instead of two. They convert each character in the plaintext to its ASCII code and encrypt it using the C = M + r × L × n model [17]. The key consists of L (a large prime integer), r (a random number added as noise), and n (a set of prime numbers multiplied together). Results showed better performance in encrypting different file sizes. The proposed method was compared with the DGHV and SDC schemes, showing superior performance. The security level is high due to using n as a multiplier for the i-Prime Modular Operation. However, the authors mention limitations related to encrypted text size, affecting storage space and the decryption process [17].

2.4. Compliance with Regulations and Standards

18 elements can directly and uniquely identify an individual as defined by the Health Insurance Portability and Accountability Act (HIPAA), such as name, social security number, and phone number. Until the mid-2000s, and based on HIPAA, removing all these fields was considered the simplest and most adequate way to protect privacy and de-identify data [18]. The same case concerns the GDPR, which focuses on personal data relating to a specific, identified, or identifiable person [19]. Homomorphic encryption thus complies with data protection regulations and privacy laws such as HIPAA in healthcare and GDPR in finance [20]. The provisions of the regulation guarantee the right to access information related to processing and allow data subjects to monitor how their data are used [21].

4.1. Math Model

The encryption scheme is homomorphic when: E(m1) ★E(m2) = E (m1 ★m2), ∀m1, m2 ∈ M. Where E is the cipher algorithm, M is the plaintext to be encrypted, and ★is the mathematical operation. This means encrypting m1 and m2 and then performing the operation ★on their results is the same as performing the operation ★on m1 and m2 first and then encrypting the result.

4.2. Noise and Circuit Depth

The noise component is an essential element in the FHE encryption process to ensure that many possible ciphertexts are obtained for each message that needs to be encrypted and thus ensure semantic security [9]. In FHE encryption, there is a direct proportion between noise and the number of homomorphic operations, where a substantial increase in noise has a negative effect and makes it difficult to decrypt correctly. In particular, multiplication increases noise significantly compared to addition, and the encrypted data has to be refreshed regularly by bootstrapping [2]. This depends on the circuit depth; the number of operations (addition and multiplication) can be performed in sequence while still being able to decrypt correctly.

4.3. Architecture and Quality

The security model on which FHE is based essentially consists of two parties: The user who owns the data with the privacy and the software service provider. The purpose and function of FHE is to protect user data from the risks of privacy disclosure that may be exposed to it on the server [9]. The quality and performance of this model depend on the evaluation results of three main criteria: security, speed, and simplicity. The scheme should be consistent, understandable, and within the standards and best practices followed by other practitioners in the field, and thus, be simple, applicable, and producible [10].

5.1. Data Collection

There are significant challenges in accessing high-quality datasets due to data use agreements, privacy concerns, ethics reviews, and costs. Therefore, synthetic data offers an attractive alternative to address these concerns [19]. Synthetic data is artificially generated using a trained model that replicates real data according to its distributions (shape and variance) and structure (attributes’ correlations) [24]. When synthetic data is derived from sensitive medical information, the challenge is to ensure that it cannot access details that would lead to the re-identification of individuals [19]. Synthea is an open-source synthetic health simulator that generates synthetic EHRs, and it was proposed by Walonoski et al. as an approach to simulate patient information in JSON and CSV format [25].

5.2. Original Scheme Analysis

In the proposed encryption scheme [17], the text is encrypted in a homomorphic way using equation (2), where m is the plaintext message; specifically, the character’s ASCII value.

The plaintext is recovered using the modular operation. Let us derive this step-by-step:

C mod L = (M+r⋅L⋅n) mod L(4)

Then, using the basic property of modular arithmetic:

(a+b) mod n = ((a mod n)+(b mod n)) mod n(5)

We get:

C mod L = ((M mod L)+((r⋅L⋅n) mod L)) mod L (6)

Based on the fact that any number multiplied by a coefficient is divisible by it, then the noise term becomes zero:

((r⋅L⋅n) mod L) = 0 (7)

Then the equation simplifies to:

C mod L = ((M mod L)+ 0) mod L (8)

Since m ∈ [0, L-1] according to [17], it concludes:

C mod L = (M mod L) = M(9)

The advantage of this scheme is that it supports homomorphic encryption. It does not require noise management and bootstrapping to reduce noise growth, especially with the multiplication process, as the modulus operation eliminates it.

For addition, taking mod L, let the noise term disappear:

C_add = C1+C2 = (M1+r1⋅L⋅n)+(M2+r2⋅L⋅n) = M1+M2+nL(r1+r2)(10)

C_add mod L = (M1+M2+nL(r1+r2)) mod L = M1+M2 (11)

For multiplication, taking mod L eliminates any term contains noise:

C_mul = C1×C2 = (M1+r1⋅L⋅n)(M2+r2⋅L⋅n) (12)

C_mul = (M1⋅M2)+(M1⋅r2⋅L⋅n)+(M2⋅r1⋅L⋅n)+(r1⋅r2⋅L²⋅n²) (13)

C_mul mod L = M1⋅M2 (14)

However, the authors did not specify how the random numbers are generated and how secure they are. As for security, no proven and tested method has been adopted to produce secure random numbers for cryptographic use. In addition, we identified a critical mathematical vulnerability in this scheme and similar schemes. Any factor of the terms used in the key then m can be used in decryption instead of L, which is claimed to be the only secret big prime integer key used in decryption.

Let f be any factor of the term r × n such that f > M. Then:

C mod f = (M+r⋅L⋅n) mod f(15)

Since r ⋅ L ⋅ n ≡ 0 (mod f) (as f divides r or n), this simplifies to:

C mod f = M(16)

For example, using n = 114197120264498507, which is the product of (1009, 1013, 2153, 6553, 7919) primes, then all possible keys that can be used in decryption other than L are 31 keys (primes and products of primes). When the attacker does not need to know all the primes used, then using n of them will be a disadvantage. Unlike RSA, someone needs to get the value of p and q to calculate d and decrypt the message [26].

5.3. Enhanced Scheme Design

Encryption process:

C = M+(r1⋅L)+(r2⋅L⋅W(n)) (17)

Where:

Decryption process:

M = C mod L(18)

M = (M+(r1⋅L)+(r2⋅L⋅W(n))) mod L(19)

M = (M+(0)+(0)) = M, when M< L(20)

5.4. Random Number Generator (RNG)

We evaluate two approaches for generating the random values r1 and r2: First, Counter_Deterministic Random Bit Generator (CTR_DRBG) is a counter-mode deterministic random bit generator implemented based on NIST specifications. Second, Java SecureRandom is a built-in cryptographically secure pseudo-RNG in Java.

5.5. Windowing Technique for Prime Selection

One of the reasons for increasing the size of the ciphertext is to adopt a set n that contains an uncontrolled number of prime numbers. Therefore, we propose an enhanced FHE scheme that provides a technique for adopting specific prime numbers from the n set. This is done by employing a dynamic prime window mechanism while maintaining homomorphic properties. Instead of using a full fixed set of prime numbers when encrypting each character, a sliding window W of size k is defined, where the size of k < n. A subrange of primes is extracted for each ASCII character, and the window shifts according to a deterministic function.

We implemented a random windowing approach for the prime selection to enhance security. For each encryption operation, we select a subset of n primes based on:

Window size:

K(seed) = k_min+((seed) mod (k_max-k_min+1)) (21)

Window offset:

Where:

5.6. Experimental Setup

To evaluate the performance and security of our enhanced scheme, we designed a comprehensive test suite with the following components:

5.7. Testbed

6.1. Random Number Generation

Hardware or software can produce binary sequences based on cryptographic randomness for random number generation. The generated random number can be used to create keys in cryptographic applications, and common cryptosystems may generate keys randomly and employ them. However, the produced number may have patterns that can be predicted. Hence, tests must be done to check for non-randomness in the generated sequence. The NIST statistical package can be used with 15 tests to test the randomness and identify weaknesses or patterns in the produced binary sequences.

A RNG uses a non-deterministic source based on entropy and processing functions. Any resulting weakness in the entropy source is overcome using the distillation process, thus avoiding producing non-random numbers such as those containing long strings of zeros or ones. On the other hand, the pseudo-RNG relies on deterministic functions to generate pseudorandom numbers through one or more random and unpredictable seed inputs [27]. Pseudorandom numbers appear more random compared to random numbers generated from physical sources. These transformations introduce additional randomness and eliminate the associations between inputs and outputs, so the statistical properties of the output of a pseudo-RNG may be better. They can be generated faster than an RNG [27].

Key requirements such as randomness, unpredictability, uniformity, scalability, and consistency should be satisfied to develop a new random bit sequence generation technique [27]. Regarding unpredictability, there are two types: forward and backward unpredictability. Forward unpredictability means that if the seed is unknown and the previous random numbers in the sequence are known, the next number must be unpredictable. Backward unpredictability means that knowing which values were generated does not lead to the possibility of determining the seed.

Based on NIST SP 800-90A, we can use approved DRBG techniques, such as Hash, Hash-based Message Authentication Code, or CTR. We chose Counter-Deterministic Random Bit Generator for its performance; it uses an approved block cipher with Advanced Encryption Standard and runs at its native speed [28].

A special key K, a counter V, and a block cipher lock box are the basic components of CTR-DRBG. The counter V is encrypted with key K using our block cipher; the output becomes the first random number. The key is kept secret, and the counter will not be reset until it reaches the specified large number limit. In addition, knowing one random number does not lead to the next number without knowing the key. CTR-DRBG has four core functions: Update, Instantiate, Reseed, and Generate (Fig. 1) [28].

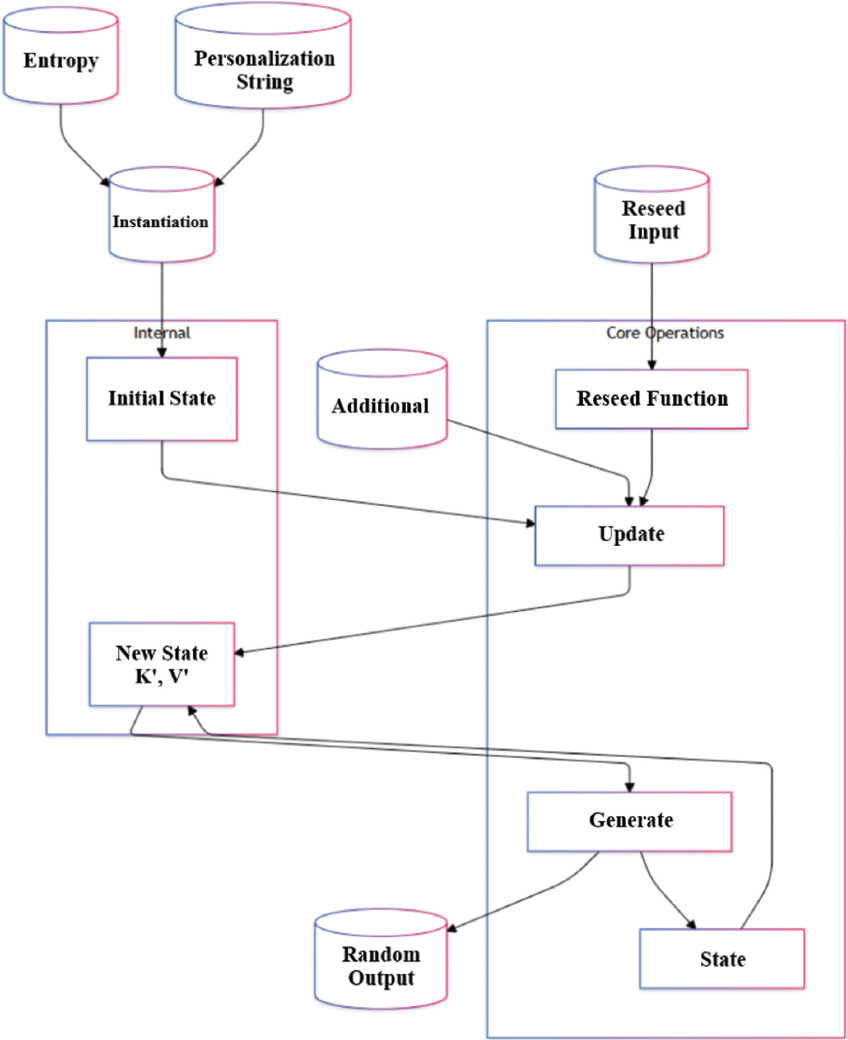

Fig. 1. Counter-deterministic random bit generator (CTR-DRBG) architecture.

On the other hand, we have SecureRandom library that complies with the statistical RNG tests specified in FIPS 140-2 and security requirements for cryptographic modules [29]. For seed management, it is handled internally by Java SecureRandom based on platform security standards. As mentioned, even if set seed is not called, the first call to next bytes will force the SecureRandom object to create a self-seed [29]. SecureRandom automatically seeds itself from operating system entropy sources such as/dev/urandom on Linux/Unix systems and Microsoft CryptoAPI on Windows [30]. Thus, when we don’t have a better seeding data source, and SecureRandom uses a highly random data source to seed automatically and securely, we can rely on it, avoiding manual seed management.

Regarding testing RNG using NIST, the recommended minimum input size for the Frequency (Monobit) Test, Runs Test, and Cumulative Sums Test is 100 bits. On the other hand, the input size for the Universal test ranges from 387,840 bits to 1,059,061,760 bits based on the block size [27]. Hence, based on that, we choose to generate sequences of 10,342,400 bits in total at least to test the generated numbers by all tests in the suite properly. For each statistical test, the minimum rate to pass the test is approximately equal to 8 for a sample size of 10 binary sequences [27].

6.2. Vulnerability Check and Security Enhancement

C mod f = (M+(r1⋅L)+(r2⋅L⋅n)) mod f(23)

Case 1: Decryption failure when f is a factor of n

C mod f = (M+(noise)+(0)) ≠ M (24)

Case 2: Decryption failure when f is a factor of r1

C mod f = (M+(0)+(noise)) ≠ M(25)

Demo Example: Message M1 = 2, Secret key L = 151 (prime number greater than M1), n = 10403 (101 × 103), r1 = 847, and r2 = 548:

Equation (17): C1 = 2+(847×151)+(548×151×10403) = 860955343

Equation (18): M1 = C1 mod L = 860955343 mod 151 = 2

Testing decryption with potential factor values of r1 and r2 × n factors (e.g., 1, 7, 11, 77, 121, 847, 101, 103, 274) does not successfully recover M1. Hence, decryption now relies solely on the value of the secret key L.

6.3. Homomorphic Properties Verification

Additive Property, based on Equation (17):

C_add = C1+C2 = (M1+(r1⋅L)+(r2⋅L⋅n))+(M1+(r3⋅L)+(r4⋅L⋅n))

C_add = (M1+M2)+L(r1+r3)+nL(r2+r4)

Decryption of Sum, based on Equations (5), (18):

C_add mod L = ((M1+M2)+ L⋅(r1+r3)+L⋅n⋅(r2+r4)) mod L

C_add mod L = ((M1+M2)+0+0) = M1+M2 (assuming M1+M2<L)

Multiplicative Property, based on Equation (17):

C_mul = C1×C2 = (M1+(r1⋅L)+(r2⋅L⋅n))×(M1+(r3⋅L)+(r4⋅L⋅n))

C_mul = M1M2+L(r3M1+r1M2)+nL(r4M1+r2M2)+L²(r1r3)+nL²(r1r2+r2r3)+L²n²(r2r4)

Decryption of Product, based on Equations (5), (18):

C_mul mod L = M1M2+0+0+0+0+0 = M1M2 (assuming M1⋅M2<L)

7.1. NIST Results for RNGs

We evaluated both CTR_DRBG and Java SecureRandom using the NIST statistical test suite. The tests were conducted using 10 separate bitstreams, each containing 1,034,240 bits in a binary file. Table 1 summarizes the comparative results.

TABLE 1: Comparison of NIST test results for RNGs

A P-value of “0.01” is considered the minimum acceptable threshold to pass the NIST test, with stronger random properties when it is close to 1 (Fig. 2). We note that both generators passed all statistical tests successfully, demonstrating their suitability for cryptographic applications. In the Runs test, while CTR_DRBG has a higher P-value, SecureRandom passes with all 10 sequences (10/10), whereas CTR_DRBG failed in one with 9/10. Based on these results, we chose SecureRandom for implementation.

Fig. 2. National Institute of Standards and Technology statistical test P-values for CTR_DRBG and SecureRandom generators across selected tests (minimum threshold P ≥ 0.01 for passing). CTR_DRBG: Counter_Deterministic random bit generator.

7.2. Performance Comparison

We tested the original n-Primes Homomorphic Encryption Algorithm for encryption and decryption times, ciphertext size, and the expansion ratio (Table 2). We use the following parameters: L = 11579208923731619542[truncated] (256 bits), n (product of primes) = 26959942480324040277[truncated] (224 bits), random number bit length = 128 bits. Hence, the combined security level is ~608 bits.

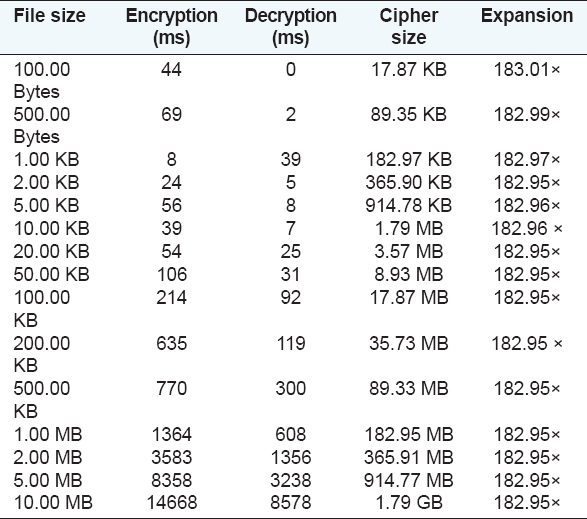

TABLE 2: N-prime scheme performance test

Then we tested the Enhanced Scheme using the following parameters (Table 3): L = 11579208923731619542[truncated] (256 bits), available primes pool = 32 primes (each ~75 bits), window parameters k_min = 2, k_max = 4 (uses 2-4 primes per encryption), security level of n = 151-301 bits (depending on window size), and random number bit length = 128 bits for each r1 and r2. Hence, the effective combined security level is ~535-685 bits and ~610 on average.

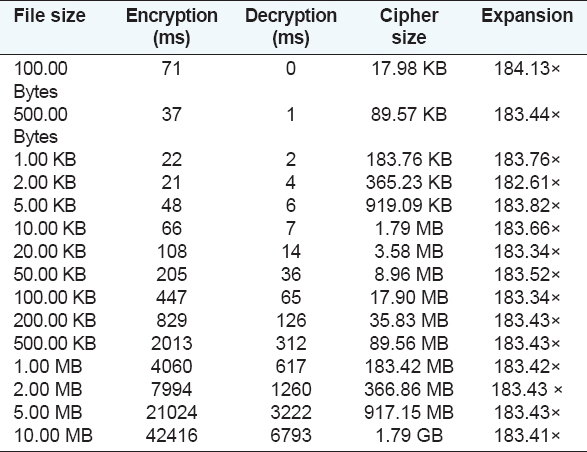

TABLE 3: Enhanced scheme performance test

For larger files such as the tested file (10 MB), the improved system requires more time in encryption, representing a performance cost 2.89 times higher than the original system (Fig. 3). This additional processing time is due to the computational complexity of the enhanced scheme, which focuses on improving security. Two random values were used, in addition to a windowing approach, which means that the increased security impacted performance.

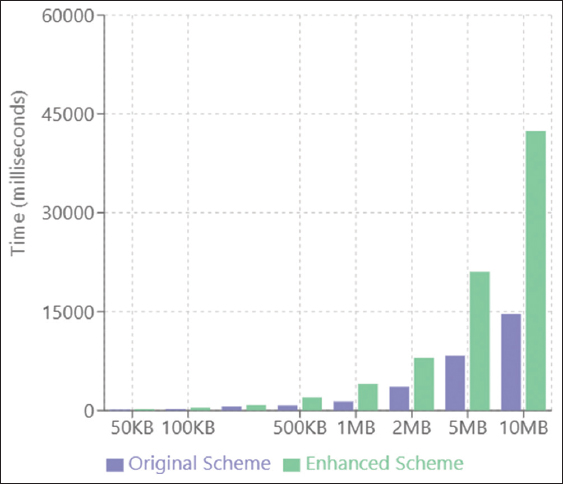

Fig. 3. Encryption time comparison between original and enhanced n-Primes homomorphic encryption schemes across different file sizes.

The decryption time is similar between the two schemes, but the enhanced scheme shows a slightly better advantage for the largest scanned file size. Consequently, decryption times remain comparable between the two schemes (Fig. 4). It should be noted that the calculated time is only for the decryption process using mod; the time required to retrieve the encrypted data from storage is not included.

Fig. 4. Decryption time comparison between original and enhanced n-Primes homomorphic encryption schemes across different file sizes.

As for ciphertext size, both systems achieved an expansion size of around 183× for all file sizes, indicating that the added security measures do not significantly impact this factor. The y-axis range is intentionally narrowed to (182–185) to highlight the slight differences (Fig. 5).

Fig. 5. Ciphertext expansion ratio comparison between original and enhanced n-Primes schemes across different file sizes.

7.3. Windowing Technique Role

To test the effectiveness of this technique for security, we chose to test the generated keys using the NIST test suite. For the first original n Prime technique, we generated keys of a 1,000,000-bit sequence binary file using the r × L × n term, where n is pre-computed by multiplying three 76-bit primes. Then, we generated another similar file using the r1 × L + r2 × L × W(n) term of the enhanced technique, but without windowing; n is fixed, pre-computed, and equal to the one used first. Finally, we generated the third bin file based on the enhanced technique with windowing (window size = 3 primes) applied over n from a set that contains 32 different 76-bit length primes. We tested all files with 10 separate bitstreams, each containing 100,000 bits (Table 4).

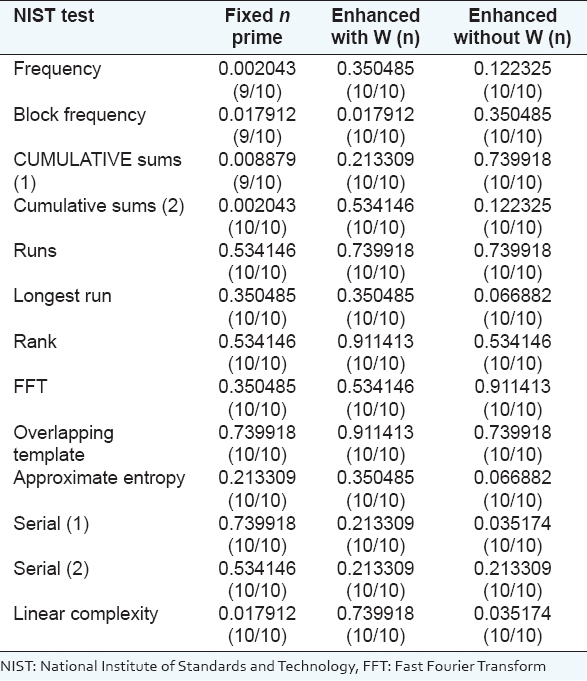

TABLE 4: Comparison of NIST test results regarding key generation

The enhanced windowing technique shows the best randomness properties of keys. It won the most tests (Fig. 6), has the highest average P-value (Fig. 7), shows the most consistent randomness across different tests (Fig. 8), and has the largest area on the polar graph (Fig. 9).

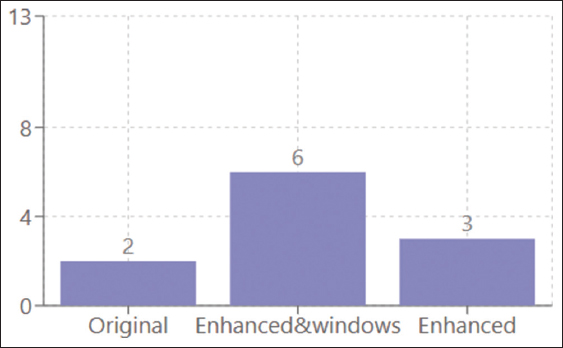

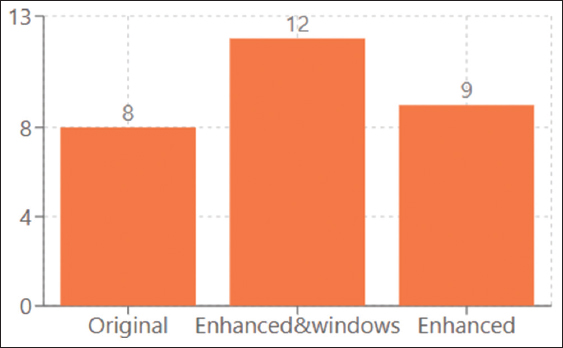

Fig. 6. Number of National Institute of Standards and Technology tests won by original, enhanced without windowing, and enhanced with windowing techniques.

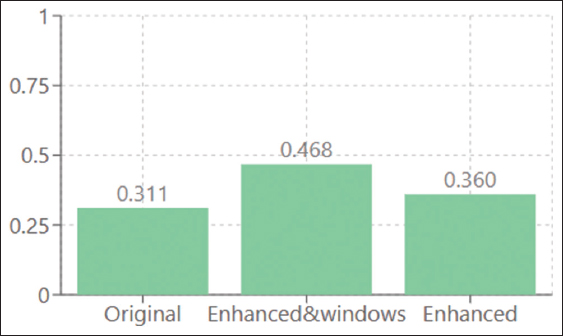

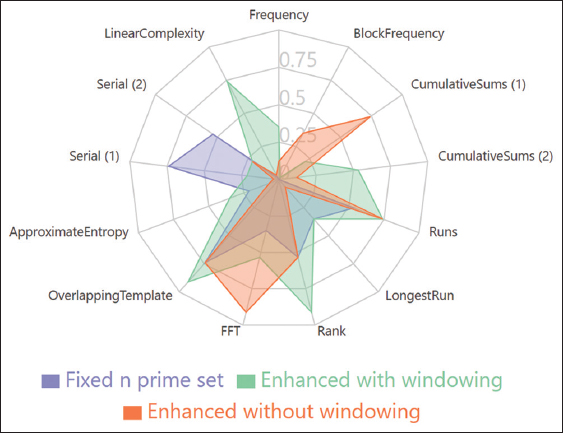

Fig. 7. Average National Institute of Standards and Technology P-values for original, enhanced without windowing, and enhanced with windowing techniques.

Fig. 8. Number of National Institute of Standards and Technology tests achieving solid randomness (P > 0.1) for each key generation technique.

Fig. 9. Security level of the generated keys based on National Institute of Standards and Technology statistical tests.

Logically, using dynamic subsets adds variability, not just mathematical robustness. This technique adds a layer of randomness because each encryption operation uses a different value of n, making it more difficult to detect patterns in ciphertexts. We also chose to have a set of primes and then extract subsets from it instead of trying to generate the primes on the fly when needed, which is computationally expensive.

7.4. Security versus Performance Tradeoff

There is a clear trade-off between security and performance in the enhanced encryption scheme, as computational overhead is added to address vulnerability in decryption attacks using factors instead of a dedicated key. Further computational overhead is added when using windowing techniques to make the ciphertexts’ own random properties resistant to pattern detection attacks (Fig. 10). Our improved scheme offers greater security benefits and may be preferred in applications where confidentiality is the priority and performance is secondary. The windowing approach also provides a limited solution by reducing the ciphertext size to a minimum acceptable level or increasing it to a certain level by modifying the window size parameters. This allows for a tailored balance between security and performance, but its impact remains limited.

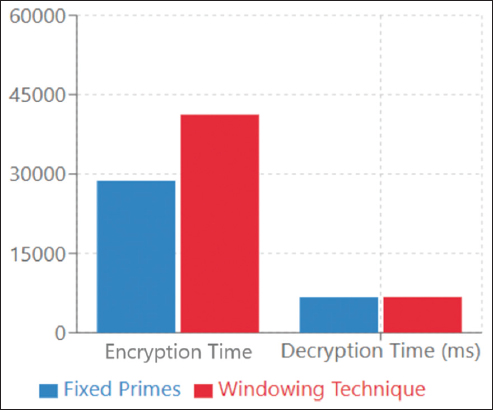

Fig. 10. Encryption and decryption time comparison between fixed primes (without windowing) and windowing approaches for the 10 MB file using the enhanced n Primes scheme.

8.1. Medication Cost Analysis

Patient records contain numerical data, such as body mass index, blood pressure, glucose levels, medication doses, treatment rates, and healthcare expenditures, that a third party may need to perform operations on. Synthea™ provides a dataset in CSV and JSON files containing patient demographics, clinical notes, medications, encounters, and regulatory data [31].

Analyzing medication costs typically requires access to sensitive financial data. Research needs (such as access to spending patterns, cost variations, and improvement opportunities) conflict with privacy requirements. We implemented our integer-based homomorphic encryption to enable statistical analysis of costs, such as measuring total spending and average costs for each type of medication, without revealing individual patient data.

The analysis was performed on a dataset of 42989 medication records, with 131 unique medication descriptions. Cost values were represented in decimals with up to two decimal places, ranging from $0.99 to $7015.8 per medication. Since our homomorphic encryption scheme operates on integers, we had to scale the data as a preprocessing step by converting the decimal cost values to integers by multiplying them by 100 (e.g., $10.25 ← 1025 cents). Then, after applying encryption to these integers and performing homomorphic operations over them, we scale back the results by dividing them by 100 (Fig. 11).

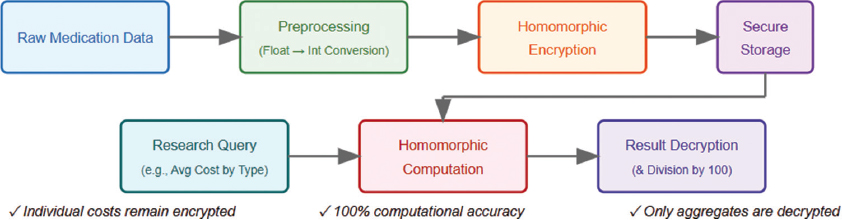

Fig. 11. Medication cost analysis workflow.

We computed the total spending cost grouping per description by applying homomorphic addition to the encrypted values. Then, we computed the average by plaintext division post-decryption. We compared the results of the homomorphic operations with calculations on plain text data to verify accuracy. As shown in Table 5, our implementation achieved perfect accuracy. As for operational efficiency, performance metrics were recorded with an encryption time of 657 ms for 42,989 records and a decryption time of 7 ms for statistical results.

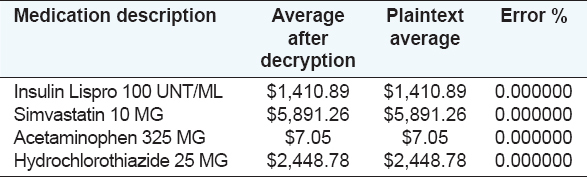

TABLE 5: Accuracy comparison for selected medications

8.2. CHADS2 Score Calculation

The CHADS2 score is used as a validated tool for predicting stroke risk in patients with Atrial Fibrillation (AF). Five risk factors are assessed with a score ranging from 0 to 6: Congestive heart failure (1 point), hypertension (1 point), age ≥75 years (1 point), diabetes (1 point), and prior stroke/transient ischemic attack (2 points) [32]. Scores of ≥ 3 indicate an increased risk of stroke, which may require anticoagulation [33].

CHADS2Score = C+H+A+D+(S×2) (26)

Patients with AF were identified in the conditions dataset by searching case descriptions (34 out of 1,171 patients). Risk factors (CHADS2 components) were then extracted for each AF patient. We encoded each risk factor as 1 if present and 0 if absent, then homomorphically encrypted the values. Finally, we calculated the score using E(C), E(H), E(A), E(D), and E(S).

The results of calculating encrypted CHADS2 scores showed 100% accuracy compared to plaintext calculations for 34 AF patients identified. 85.3% of these patients were classified as high risk. The total processing time was 309 ms, with 98.4% spent on encryption, 1.3% on decryption, and <1% on calculation.

However, the current technique faces challenges as related math operations require dealing with categorical data. For instance, identifying a patient with AF requires decrypting this information during comparison and encoding, which compromises privacy. Similarly, identifying descriptive risk factors required matching for “hypertension,” “diabetes,” etc., which required displaying the data unencrypted.

Binary encoding can ensure complete privacy through additional specific structured storage (Fig. 12). One drawback of this method is its storage cost, as it requires as many columns as the expected number of descriptions—about 131 in the current conditions’ dataset. For example, a patient with diabetes would have a value of 1, while the remaining 130 descriptions would have a value of 0. All these values would be homomorphically encrypted, which would greatly increase storage requirements.

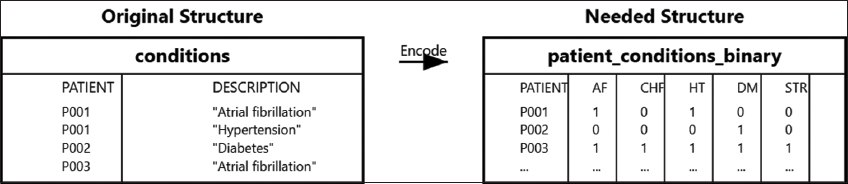

Fig. 12. Data structure required to apply homomorphic operations over binary encoded categorical data to ensure full privacy.
