An Efficient Hybrid Framework U-Net-based deep learning Technique of Early Detection of Pulmonary Nodules using LIDC-IDRI Dataset

1. INTRODUCTION

Pulmonary nodules cancer in its primary phases is not evident with obvious symptoms, which impede early diagnosis [1]. Published statistics indicate that lung nodule cancer is an important role of the leading reasons of destruction of the living in the world, accounting for 18.75% of wholly cancer deaths [2]. Furthermore, according to a study conducted in 2023, more than 238,000 people in the United States are expected to be exposed and diagnosed with lung cancer, and nearly 127,000 lung cancer patients will perish [3] and according to a study conducted in the following year, the facts indicated that about (50%) of smokers suffer from a lung nodule, and (25%) suffer from two or more [4]. Since pulmonary nodules are small spots in the lung tissue that are solider than the surrounding lung, they are usually sphere-shaped or oval, furthermost of these nodules are smaller than 1cm in size, while they can grow up to 3cm in size, trials by organizations such as the National Lung Screening Trial (NLST) have indicated the high sensitivity of (CT) which can help stakeholders detect lung cancer early and thus reduce lung cancer deaths by (20%) [2]. Since it can effectively help doctors recognize the size, shape, and nature of pulmonary nodules more accurately by making it easier to identify important features present in each imaging slice such as texture and shape [4], the early diagnosis of nodules is very necessary for the controlling of lung cancer affected [5]. Fig. 1 illustrates how pulmonary nodules from a well-known open-source image dataset which they may be spherical opacities or irregular lung lesions ranging in size (3–30) mm and can be hermitic or multiple.

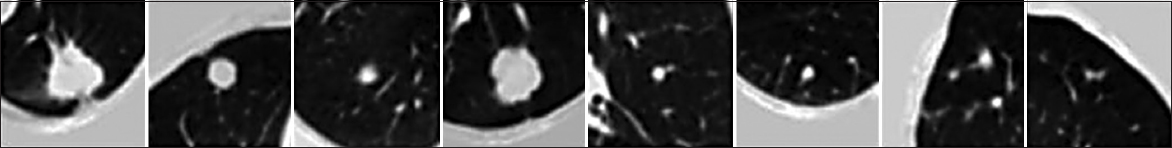

Fig. 1. Computed tomography image examples of the dataset (lung image database consortium).

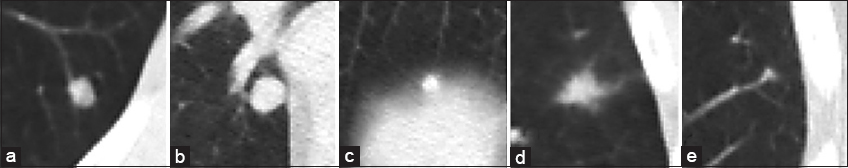

Nodules usually have various kinds and morphologies [6] such as (with/without) vasculature attachment (surrounded/not surrounded) by vasculature and lung membrane, (Far/near) to the diaphragm, (regular/irregular) formed, (low/high) contrast nodule, (has/has not) vasculature attachment, (single/multiple) in number, boundaries (smooth/rough), density (solid/semi solid/ground glass) nodule, and position (specified/unspecified)) as shown in Fig. 2.

Fig. 2. Various kinds of pulmonary nodules. (a) With vasculature attachment. (b) Between vasculature and lung membrane. (c) Small and near the diaphragm. (d) Irregular shape with low contrast. (e) Has not vasculature.

Simultaneously, computer-aided diagnostic (CAD) is a typical technique as a domain of digital image processing for recognizing and detecting the many-sidedness of diseases, as well as different kinds of cancer. Moreover, it’s systems also provide appropriate support for clinical decision-making [7]. The majority of pulmonary nodule detection systems perform two tasks: Lung nodule detection techniques achieve two missions: (1) Detect candidate nodules and (2) reduce false positives (FPs). Any nodule not determined at initial stage will no far be retrieved later. Thus, the first stage typically permits to be actual very sensitivity in being evident with the rate of numerous FP cases. Consequently, the second phase aims to reduce the number of FPs [8]. In recent years, CAD systems have mainly depended on machine learning (ML) and deep learning (DL) technologies [9], which introduce a major role as a second interpreter in the interpretation of CT images [4]. The aim of choosing DL is to eliminate the major drawbacks of using traditional ML methods, especially when it depends on feature extraction [9]. In spite of DL requiring large amounts of computing power and data for training, it has been widely researched due to the accuracy of its estimations [7]. DL has proven itself as a major breakthrough not only in the fields of medicine but also in another numerous scientific fields, making far-reaching changes in the way we learned and interpreted complex data forms. Enclosed by the dominance of medical imaging, mainly in the analysis of CT lungs, there is an eminent tendency where DL models are being combined for nodule segmentation. These models involve numerous network architectures such as convolutional neural networks [CNNs] which are the furthermost broadly used, VGG16, ResNet [10], dual-branch residual networks, Mask R-CNN, and U-Net [3].

A full decade has passed since the invention of U-Net and its assistance in the field of medical image processing [11] as a semantic segmentation network built on a fully CNN [12]. Its manner was developed as a product of the development and enhancement of CNNs. In addition of allowing computing the measurable attribute of damaged (texture, perimeter, direction, area, etc.), which facilitates the identification of the nature of the damage and improves and reduces the treatments required to exclude it [11].

The basic U-Net neural network structure is a typical convolutional network construction consists of repeated application of convolutions, each followed by a rectified linear unit (ReLU) and a max pooling, gives a symmetric U-shaped architecture as indicated in Fig. 3, as noted that it consists of dual parts: The left is the compression (encoder) and the right is the expansion (decoder). Throughout the reduction, the spatial information is decreased while feature information is increased. The extensive pathway collects the feature and spatial information through a sequence of up-convolutions and concatenations with high-resolution features from the constraining path.

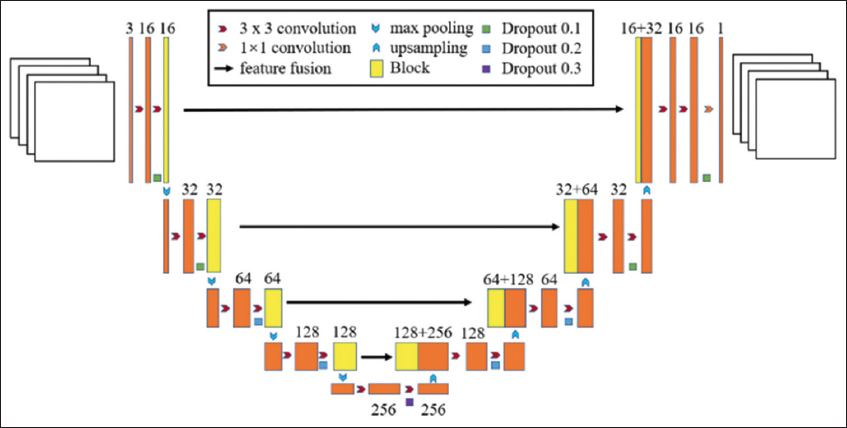

Fig. 3. General structure of the U-Net neural network.

At the termination of each up-sampling, convolution is applied consuming a (3×3) kernel and a ReLU activation occupation. During the up-sampling process, new pixels are increased until the input is molded as the desired dimension, allowing the last layer to utilize a (1×1) convolution which aligns feature vectors to the aim classes.

Building a hybrid U-Net-based DL framework for the lung image database consortium (LIDC)-IDRI dataset’s early pulmonary nodule identification and classification is the goal of this research. Through the integration of strong segmentation and classification approaches designed to identify nodules early on, the goal is to increase diagnostic accuracy by utilizing DL’s advantages in medical image processing.

2. RELATED WORK

Over the earlier years, cancer handling has been the serious emphasis of medical research on human health over the world [13]. In this section, we presented a comprehensive review of the research conducted over the last decade that has focused on the same subject as our study. Sun et al. in 2016 [14], introduced another study using CNNs. The authors implemented three distinct DL approaches, utilizing cropped (52 × 52) pixel covers from the LIDC dataset for training and testing. These approaches included CNN, deep belief networks (DBN), and a stacked denoizing autoencoder (SDAE). The CNN model featured 3 convolutional layers, each followed by max pooling, using 5 × 5 kernels to produce (6, 8, and 12) feature maps. Nodule areas in the images were segmented based on the uniting form of truth files from 4 radiologists. Accuracy was relied upon in performance evaluation, with CNN, DBN, and SDAE achieving scores of 79.76%, 81.19%, and 79.29%, respectively.

In Zhang et al. [15] developed a globally optimized hybrid geometric active contour model along with a computerized lung segmentation technique, by integrating both global sections and edge information, the algorithm achieved a very high and average F-measure of (99.22%). The efficiency of the algorithm was validated on (40) images of CT scans from the LIDC dataset. In (2018) Sindhu et al. [16], employed a single CNN that instantaneously predicts multiple bounding boxes and their corresponding class probabilities. The approach combined object classification and regression to estimate bounding boxes, resulting in higher inference performance compared to standard classifiers used with a sliding window approach. The Detect-Net model featured a 22 fully convolutional layers without any fully connected (FC) layers, enabling the network to admit the inputs of varied sizes and apply the CNN in a sliding window style with suitable paces. The system was evaluated on the LIDC dataset and achieved a sensitivity of 89% at 6 FPs per image and a precision of 93%. Xie et al. [17] modified the faster R-CNN framework by integrating two region proposal networks and a deconvolutional layer to reveal nodules expected. They trained (3) separate models for several types of slices, which were later fused to produce the final results. In addition, they introduced a 2D CNN-based boosting architecture for FP reduction, functioning as a classifier to differentiate true nodules from candidates. Misclassified samples were retained for retraining, improving sensitivity for pulmonary nodule detection. The final categorization results were gained through a voting process that combined the outputs of these networks. Extensive testing showed that a sensitivity of candidate detection was 86.42%. Qinhua et al. (2020) developed another technique using an automated segmentation of the lungs in CT images, used mask R-CNN, to specify the model for region mapping of the lung, incorporated with supervised and unsupervised ML methods Bayes. The technique obtained an additional accurate response related to the benchmarked approaches, with a segmentation accuracy of 97.68% [18]. Masood et al. [19] introduced an improved multi-dimensional region-based fully convolutional network approach for detecting and classifying pulmonary nodules using LIDC-IDRI dataset. By means of incorporating an efficient multi-layer fusion region proposal network with spatially-sensitive score maps as the cornerstone of the image classifiers, the authors utilized a median intensity projection to leverage CT scan data with applying a deconvolutional layer to identify areas of interest. When compared to other detection and classification methods, the system reached a rate of sensitivity (98.1%) and (97.1%) of accuracy.

After a year, Gopi et al. [20] suggested a technique for categorizing and confirming the reliability of different phases of pulmonary nodules progression and introduced a Cloud-based Lung Tumor Detector and Stage Classifier (Cloud-LTDSC) as a hybrid technique for analyzing positron emission tomography/CT images. They used the LIDC-IDRI benchmark dataset and assessed an experimental efficiency result (98.6%) as a rate of classification accuracy.

Musthafa et al. [21] proposed a hybrid ML technique for early lung nodule prediction from the LIDC-IDRI dataset using a neural network-based approach for classification. Their approach integrated multiple machine learning methods, including support vector machine, Mask-Region-based Convolutional Neural Network (RCNN), and CNNs, and they introduced an improved snake swarm optimization with a bat model that used statistical data. In addition, a chaotic atom search optimization algorithm was applied to choose the most relevant features, reducing the dimensionality problem. Finally, they designed a learning-based deep neural network hybrid classifier for nodule detection and gained (96.39%), (95.25%), (96.12%), and (96.05%) of accuracy, sensitivity, specificity, and area under the curve (AUC), respectively.

In the same year, Konovalenko et al. [11] proposed U-Net-like architectures using encoders such as ResNet, DenseNet, and others and investigated the relevance between the training validation measurements and the final segmentation test. After analysing the detection accuracy, they found that neural networks trained consuming Nesterov momentum stochastic gradient descent optimizer had the greatest generality properties. To choose the superlative model throughout training based on the validation measurements, the core test measurements of recognition quality (dice similarity coefficient) were analyzed based on the validation metrics. It was found that ResNet and DenseNet models realize the highest generalization characteristics for their task. The maximum accuracy for recognition was achieved using the ResNet152 backbone with U-Net model. Their proposal reached 93.04% of accuracy.

After a year, Suriyavarman et al. combined an efficient net neural network technique with U-Net for both goals (segmentation and classification) of pulmonary nodules on the LIDC-IDRI dataset. A semi-supervised technique that depends on extracting features was used to yield the advantage of the massive amount of input images without extreme signs. They applied ResNet-50 model and feature pyramid network (FPN) to extract features and then applied a neural network classifier to estimate unlabeled nodules. Their technique’s results presented a higher accuracy of (91.67%) [22].

Gupta et al. proposed framework exploited an adapted U-Net architecture on the LIDC-IDRI dataset which employed the classical u-net manner for multi-scale feature extraction with Differentiable Architecture Search (DARTS) which applied perception of effective architecture illustration. Moreover, the adapted U-Net is accomplished detecting and classifying pulmonary nodules efficiently also professionally. The proposed framework obtained 95.01% of accuracy rate [23].

3. PROPOSED APPROACH

This section reveals the detailed of our proposed approach which comprises the detection of pulmonary nodules using DL which has become a key motivation in medical imaging, essentially for early lung cancer diagnosis. It is also worth mentioning that several DL techniques are extensively used and have been confirmed to be effective. The preferred approach is often contingent on the dataset, computational properties, and the accuracy required.

In this study, we proposed a hybrid image classification approach combining texture and shape feature extraction methods with (U-Net CNN) to classify the LIDC images into two predetermined kinds. The method consisted of numerous phases: Preprocessing, features extraction, and u-net-based DL classifications as shown in Fig. 4 bellow.

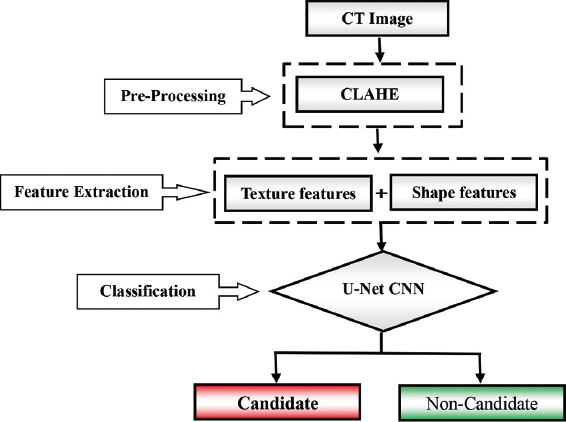

Fig. 4. The diagram of our proposed technique.

Our workflow can be summarized as follows:

3.2. Preprocessing

Our preprocessing techniques were used to enhance the feature of the images, which in turn improve the performance of the detection and classification, by enhancing the contrast of specific ranges after adjusting the intensity levels according to local histograms [26], this stage involved the contrast limited adaptive histogram equalization (CLAHE) algorithm as shown in Fig. 5, which executed to enhance the contrast of each input image.

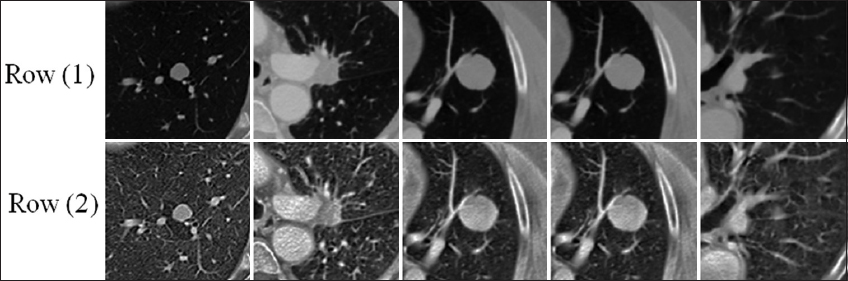

Fig. 5. Demonstrates the differences between the original images row (1) and the same images after applying contrast-limited adaptive histogram equalization row (2).

3.4. U-Net-based Architecture

Our technique is performed using a hybrid approach, where both texture and shape features are combined with features learned by a custom U-Net-based. The U-Net architecture is designed specifically for medical image segmentation and classification, as detailed in Fig. 6 below:

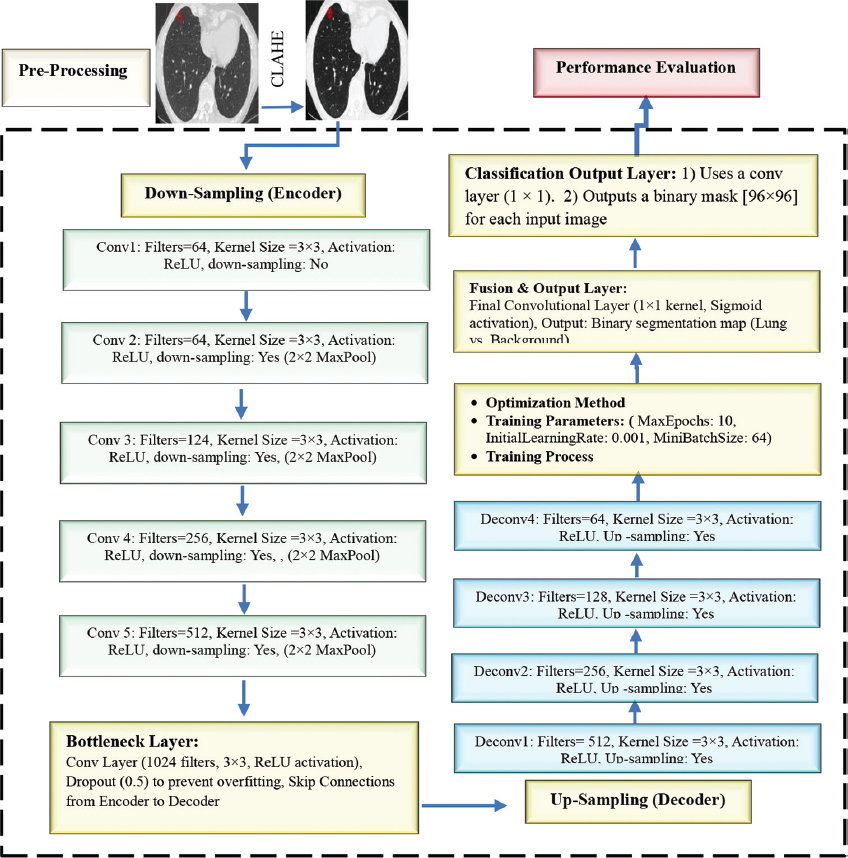

Fig. 6. The proposed framework block diagram.

The methodology increased model interpretability, which is essential in clinical practice, in addition to improving detection accuracy for small and subtle nodules. All things considered, the framework offers a significant advancement in the direction of more accurate, comprehensible, and effective CAD in lung cancer screening.

4. EXPERIMENTAL RESULT

To compare the results with other models and decide how to use them in the future, it is standard procedure to evaluate the outcomes after an experiment [26]. We utilized accuracy, sensitivity, specificity, and AUC as metrics to evaluate the model and our methodology. The following techniques are employed to describe them:

a) Accuracy is the most commonly used measure to answer the question, “Of all the predictions we made, how many were correct?” It is the ratio of accurate forecasts to total predictions and is calculated with the use of Equation (1)

b) Specificity percentage of true negative situations that were accurately forecasted to be negative. and determined using Equation (2).

c) Sensitivity emphasizes the model’s effectiveness in producing all the favorable results. Additionally known as the “true positive rate,” it provides an answer to the query, “How many of all the data points did we acceptably predict as true?” Equation (3) below is used to calculate recall.

d) AUC, or more precisely, the receiver operating characteristic curve. It measures a binary classifier’s total capacity to discriminate between positive and negative classes at every classification threshold. Equation (4) is used to determine the AUC.

The decision to employ these particular metrics (accuracy, specificity, sensitivity, and AUC) depends on the classification challenges, the application domains, and the requirements for a thorough assessment [23].

4.2. Data Preprocessing

To improve the performance of preprocessing by adopting CLAHE to improve the input images contrast and certainly increases the accuracy and speed of nodule identification and reduce the computational load of network training and evaluation, therefore, to reduce the interference of unimportant lung regions processed on the evaluation outcomes, the obvious salient locations of each labeled image were cropped based on the node position provided in the annotation files, and the original image sizes were cropped to (96 × 96) pixels to retain the fully important private information as shown in Fig. 7.

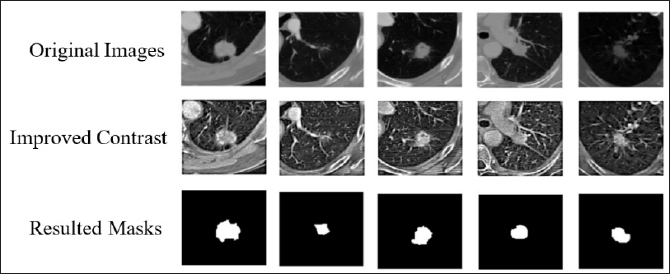

Fig. 7. Pulmonary nodule segmentation results using U-Net convolutional neural network.

4.3. Results

To validate our technique and ensure the segmentation effect of the proposed hybrid U-Net framework model, six models, including FCN, SegNet, Resnet, Densenet, and U-Net, were tested, respectively; the results in Table 2 showed the strength of our proposed model.

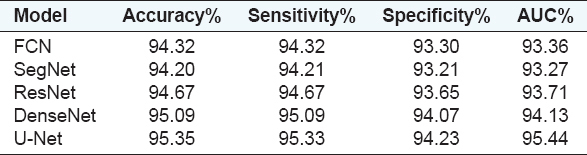

TABLE 2: Comparative five experimental models results

Even though the objective of this study was diagnostic accuracy, processing time is still an important consideration for real-time clinical applications. In subsequent studies, we want to assess and improve the framework’s computational effectiveness. This will facilitate its useful implementation in medical situations where time is of the essence.

4.4. Comparative Analysis

More tests were conducted to evaluate our suggested technique performance by comparing it with other techniques [Table 3]. Some of cells are left as blank because all of the most recent methods either tested their strategy only in terms of accuracy or combined accuracy with other metrics.

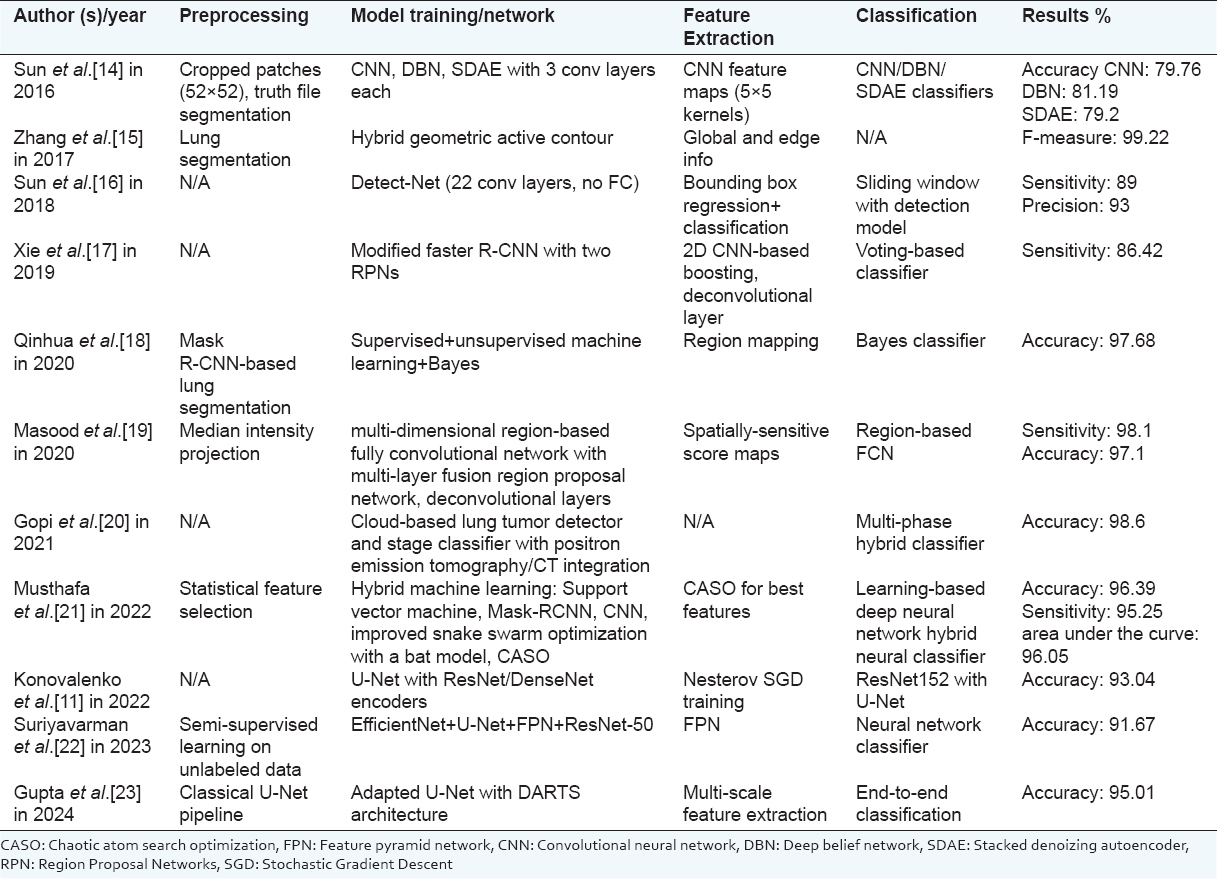

TABLE 3: Results of other comparable techniques

5. CONCLUSION

Pulmonary nodules early detection using CAD systems is crucial in reducing lung cancer mortality rates, especially given the asymptomatic nature of the disease in its early stages.

In order to detect and classify pulmonary nodules early on, we used the LIDC-IDRI dataset to propose a robust hybrid DL system based on the U-Net architecture. To detect even subtle or irregular nodules, the framework showed good accuracy and reliability by combining DL approaches with efficient preprocessing, segmentation, and custom feature extraction.

Great diagnostic performance was demonstrated by the model’s remarkable 95.35% accuracy, 95.33% sensitivity, 94.23% specificity, and 95.44% AUC. These outcomes demonstrate the value of integrating DL with conventional techniques to produce an all-encompassing and interpretable system. In addition to increasing diagnostic confidence, the suggested method aids in clinical judgment when screening for lung cancer. Although encouraging, additional validation on external datasets is required to improve generalizability. However, this structure provides a solid basis for further developments in automated pulmonary nodule identification.
