1. INTRODUCTION
Groundwater is a substantial source of freshwater; however, it does not always available sufficiently where it is needed. Population growth, industry development and climate change increased demand of fresh water, which causes the decline of groundwater table [1]. Therefore, the lower availability of groundwater by side of increase in its development, require sustainable groundwater management [2] and [3].
Geographic information system (GIS) and remote sensing are the two mechanisms that have been used remarkably in groundwater management researches. GIS is widely used for modeling process by preparing the input parameter for the model through generation of digital geographic database [4]. Assessment of groundwater resources of an area requires preparation and integration of many factors such as: slope, drainage, land use (LU), rainfall, elevation, soil texture, geological structures and geomorphic features [4]. Integration of various geospatial information is carried out by taking values of each data raster and multiplying them with the specific weight. Weights determination is intuitive and is obtained from the values used in the literatures or from the experience.
Many researches were studied this issue utilizing both GIS and remote sensing techniques [5]-[17]. In 2012 Jani published a research used GIS to model groundwater flow for the aquifer called Lincolnshire Limestone in the Slea catchment, United Kingdom. The resulted model has confirmed the advantage of using GIS tool in modeling groundwater [2].
Rawal and Vyas (2016) presented a research to delimit the water logging in Mehsana district, India using GIS application in groundwater modeling and identify the perched aquifers in their selected area. Their study used factors such as soil layer, LU layer, and the temporal distribution of water logging. The resulted model suggests convenient method to control water logging and identifies the groundwater regime to estimates the total recharge [18].
In a study conducted by Singh, GIS techniques were used to identify the recharge zones of groundwater in New Zealand. Many data sets were prepared such as soil layer, LU layer, aspect, slope, lithology, and drainage density with 500 m × 500 m spatial resolution. The data set overlies to develop potential zones of the groundwater. The output results explain; the groundwater has low potential in both residential and high elevation areas, while areas of water body and low elevations fall in the high potential zones [19].
Western Ghats river basin/India was selected to demonstrate the groundwater model. To delineate groundwater zones, 12 layers were utilized such as geology, drainage density layer, rainfall, soil, slope, geomorphology, lineament density, LU/land cover [LC], roughness, topographic position index, topographic wetness index, and curvature. The relative weights to each class in all maps were allocated using Analytical Hierarchy Process [20].
Karim and Al-Manmi selected Halabja Said Sadiq sub-basin as a study area to model the groundwater recharge zones using GIS and geophysical mechanisms. Eight thematic maps were used such as hydrogeology, LU/LC, topography, drainage density, lineaments, soil type, slope, and rainfall with four geoelectrical resistivity profiles. Three zones of groundwater potential delineated which are low, moderate and high and cover 33%, 24%, and 42% of the total area, respectively. Spatially, the highest zone is located along with the Quaternary deposits which characterized by high lineament density, low slop, and pediment deposition [13].
Groundwater recharge zones in a tropical river basin of Kerala, India were identified using integration of different layers. Ten thematic layers were prepared for mapping groundwater recharge. Four classes have been identified and approximately half of the basin area is located in two recharge zones; very high and high zones which are appropriate for groundwater recharge [3].
2. STUDY AREA
The proposed study area is located in Sulaimani Governorate, north of Iraq – Kurdistan Region, as shown in Fig. 1. According to the topographic map, the elevation is ranged from 182 to 3430 m. The latitudes are between (34° 32’ 15” N and 36° 34’ 15” N), and the longitudes are between (44° 30’ 30 E and 46° 20’ 30 E). The total area calculated as 18,525 km2 and the average annual rainfall of the study area is (618 mm) for 15 years from 2000 to 2014 taken from 14 metrological stations distributed within the proposed area. The study area has hot and cold weather in summer and winter, respectively, with long summer and winter season in compare to spring and autumn season [21], [22].

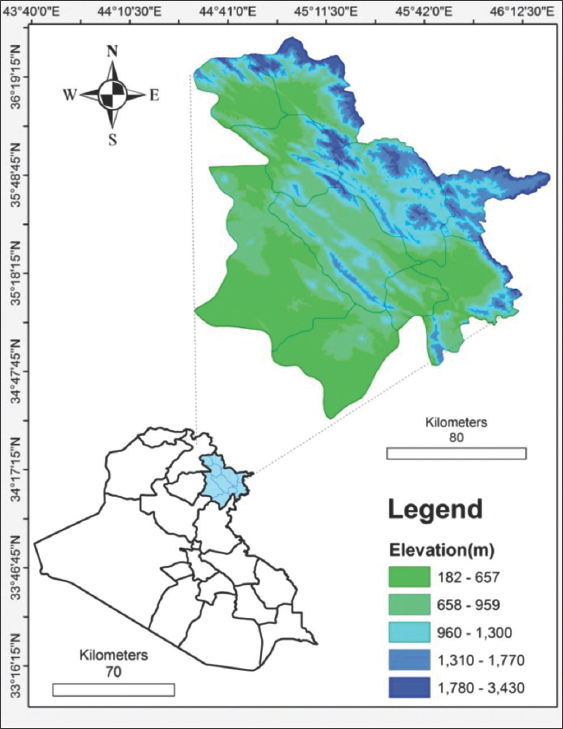

Fig. 1. Study area location and digital elevation model.
3. MATERIALS AND METHODS
Different factors (layers) were used for the modeling process. Selection of factors was based on data availability across Sulaimani Governorate. The data were collected from various sources and include: Digital Elevation Model (DEM), soil texture, LU/LC, rainfall, slope, and drainage density. All the raster layers were projected using Universal Transverse Mercator UTM Projection Zone 38, Datum WGS84 with 30 × 30 m resolution.
The method used in this study consists two main steps: (a) Geospatial database generation, (b) generation of weight for groundwater prospecting factors and associated features. The complete process of the groundwater potential zone delineation is shown as flowchart in Fig. 2. All the factors prepared for the current study and their impact on the occurrence of groundwater in Sulaimani are illustrated below:

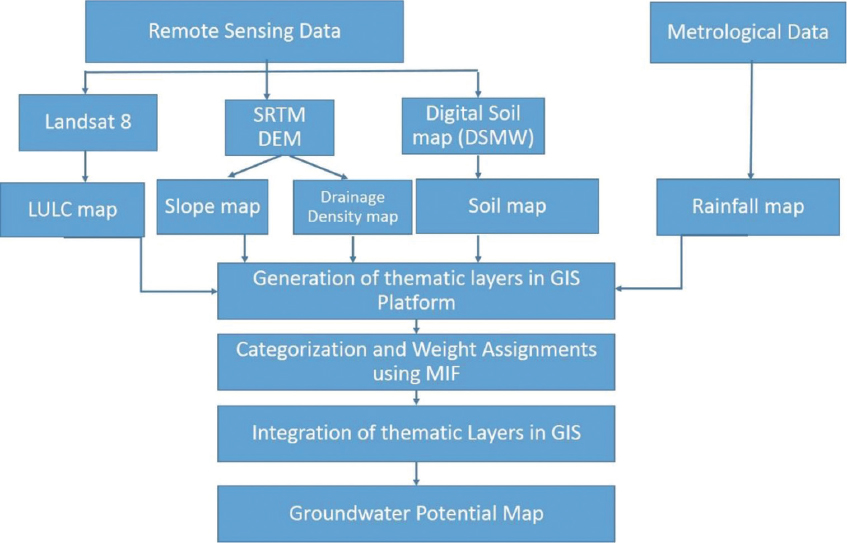

Fig. 2. Flowchart for delineating groundwater potential.
3.1. DEM
The DEM data for Sulaimani as shown in Fig. 1 with elevations ranged from (182 to 3430 m) classified into five classes spatially distributed in the area as (35%, 31%, 19%, 12%, and 4%) from low to high elevations. The data were downloaded from USGS earth explorer website using Shuttle Radar Topography Mission1 Arc Second-Global [23].
3.2. LU/LC
LC marks the physical land type such as water or forest; however, the LU provides information how people are using the land [24]. LULC gives the primary information on infiltration, soil moisture, surface water, and groundwater, additionally to give a signal on groundwater demand [25]-[29].
The LU map was created through image processing of remote sensing data using Arc GIS software (Iso Cluster Unsupervised Classification), by downloading 3 Landsat8 images (acquired on October 2019) with 7 bands for each image [23]. The study area was classified to 5 classes of LU/LC: Water, Forest, Crop, Urban area, and Bare Soil which is shown in Fig. 3.

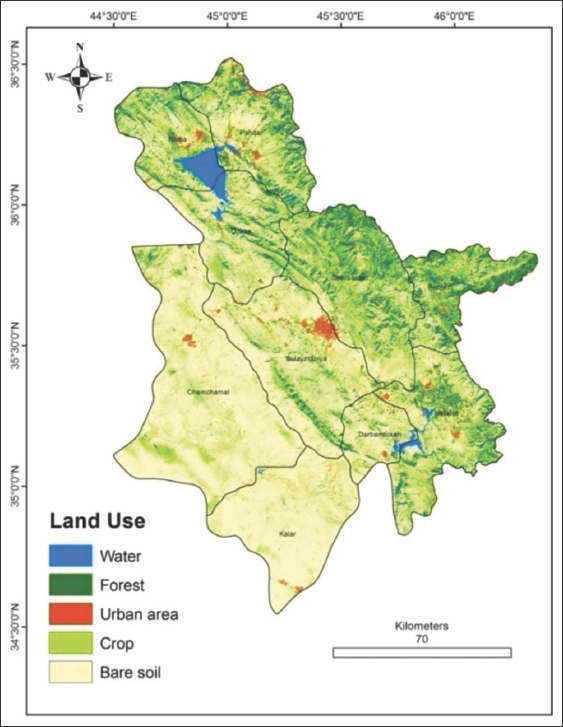

Fig. 3. Land use/land cover of the study area.
3.3. Soil Map
Soil properties influence groundwater recharge. The soils with coarse texture has high permeability which increase’s groundwater recharge, while fine texture soils with low permeability decrease the groundwater recharge [30]. Therefore, soil properties such as permeability, porosity, texture, and structure have considerable effect on groundwater recharge [3] and [31].
The soil map of Sulaimani area was designed and classified to 5 classes based on percent of fine and course aggregates (soil texture) as shown in Fig. 4. This map shows the distribution of the soil texture in the study area as: (Sandy Loam 1%, Clay 17%, Loam 36%, Sandy clay 9%, and Sandy Clay Loam 37%). The major soil types in the study area were grouped as: (Leptosol LP, Vertisol VR, Calcisol CL, and Gypsisol GY) [32]. The data were downloaded from the FAO-UNESCO Soil Map of the World and the present version is (3.6) of the digitized Soil Map of the World [33].

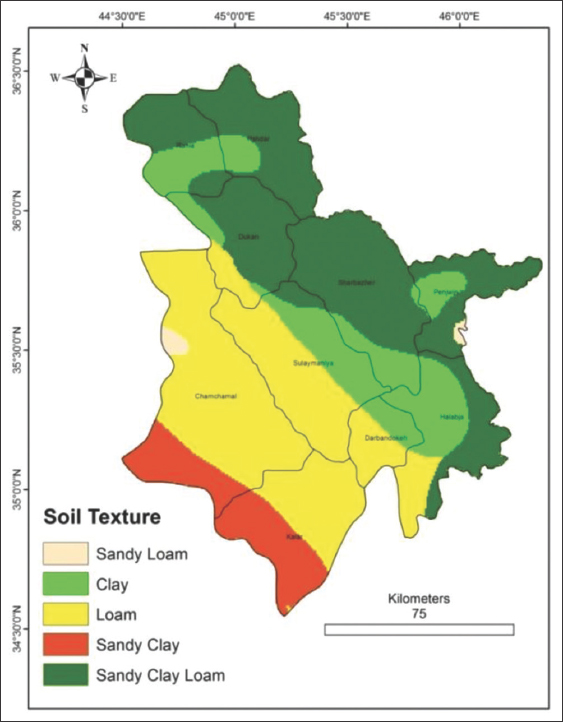

Fig. 4. Soil texture map of the study area.
3.4. Rainfall Map
The groundwater recharge is remarkably affected by patterns of rainfall during recharge seasons [34], [35]. The average annual rainfall for the 14 stations from 2000 to 2014 in Sulaimani is represented in Fig. 5a. Rainfall map was created by Arc GIS utilizing Inverse Distance Weighted interpolation method with 5 classes in which each class represent different ranges of rainfall distributed as (22%, 21%, 27%, 23%, and 7%) from low to high ranges shown in Fig. 5b.

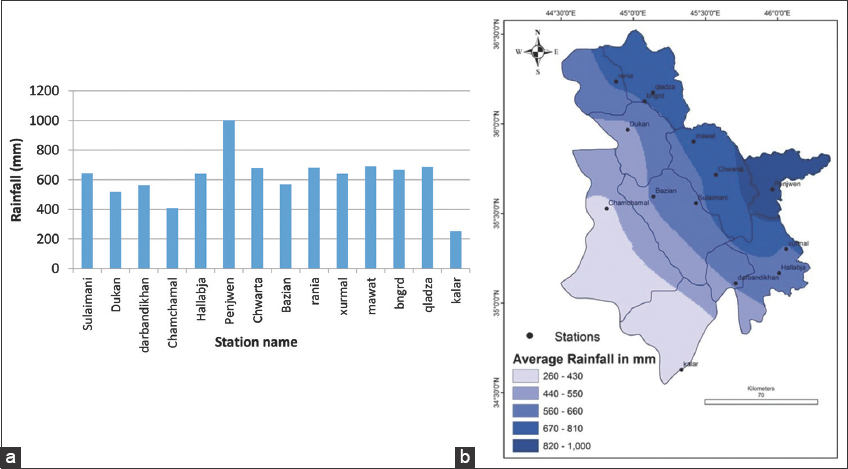

Fig. 5. (a). Average annual rainfall histogram of the stations. (b) Rainfall map of the study area.
3.5. Slope Map
The slope map was prepared from the DEM using 5 classes in degree and the spatial distribution in the study area are (very low slope 42%, low slope 26%, moderate slope 17%, high slope 11%, and very high slope 3%) as shown in Fig. 6. Slope plays a notable effect on groundwater flow. The slope is considered as an essential factor for runoff generation due to its control of the division of precipitation into runoff and infiltration. A higher slope results in low recharge and fast runoff. Hence, the slope is inversely correlated with groundwater potential [8], [36]-[39].

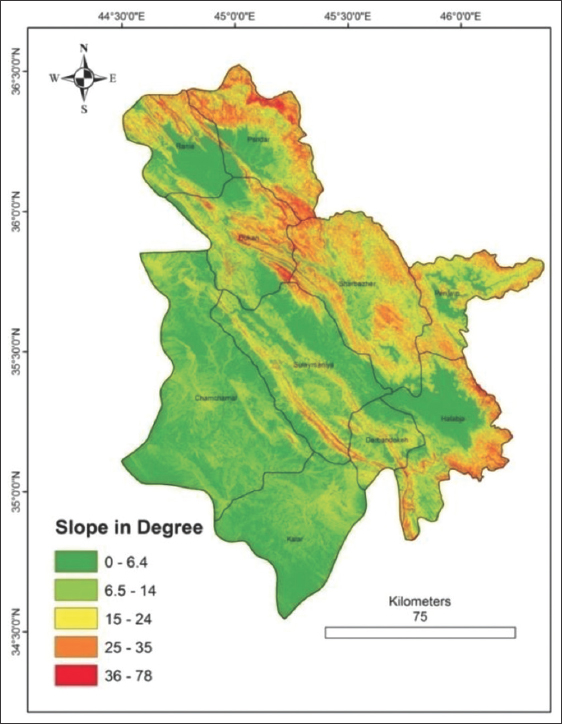

Fig. 6. Slope of the study area.
3.6. Drainage Density
Drainage density can be calculated by taking the ratio of total length of all the streams in a drainage basin to the total area of the basin [40]. The drainage density has a reciprocal relation with the permeability. Drainage density with high values produces less permeability whereas low drainage density shows the areas of high permeability. Accordingly, it is a significant factor for modeling the groundwater potential zone [20]. Drainage density is calculating using the equation below [27]:
Map of the drainage density (Fig. 7) was generated using ArcGIS tool called line density analysis and 5 classes have been identified ranged between (0.21 and 2.9 km/km2).

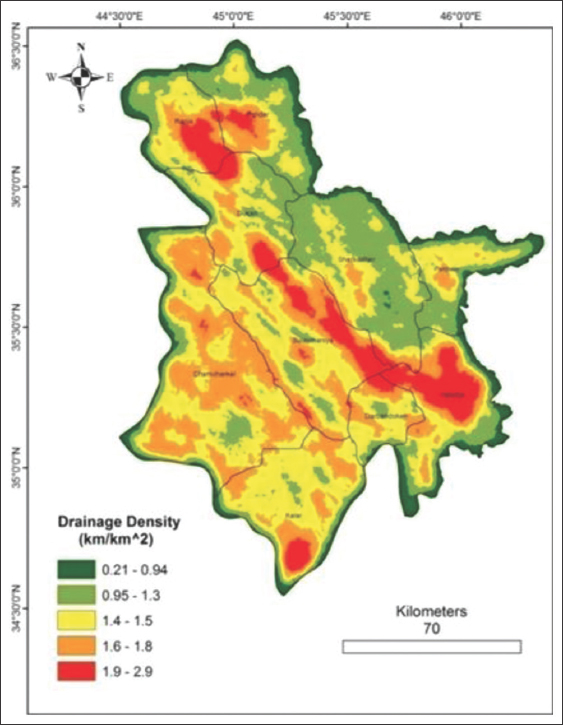

Fig. 7. Drainage density of the study area.
3.7. Multi-influencing Factors (MIF)
Six factors, namely, DEM, LU/LC, soil texture, rainfall, slope, and drainage density have been specified to model the groundwater recharge potential zones. The mutual relations between these factors and their effect are shown in Fig. 8. These factors are interdependent and their influence on the recharge potential of groundwater has been estimated using MIF technique. The major (Mj) and minor (Mn) effects of the factors are designated as a numerical value of 1.0 and 0.5, respectively (Table 1). The selected weight for all factors has been calculated using the following equation:

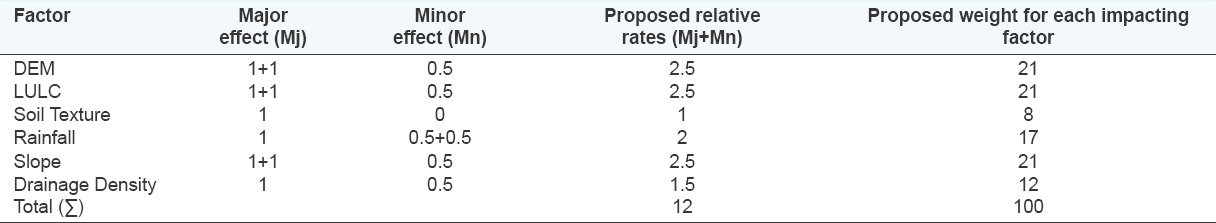

TABLE 1: Effect of the impacting factor, relative rates, and proposed weight using MIF technique (modified after [3], [39], [41])

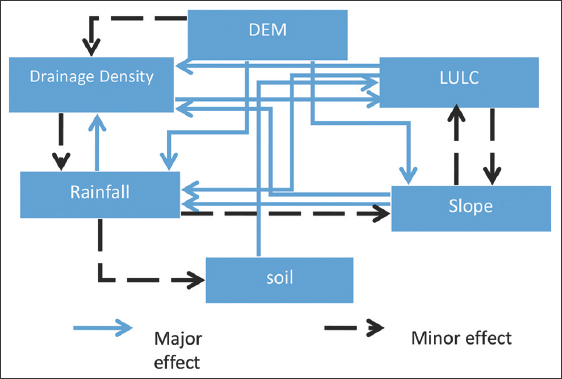

Fig. 8. Mutual relations between all the factors influencing the groundwater potential zone.
3.8. Layers Overlay
The Weighted Overlay tool in Arc GIS was used for creating the potential groundwater zones in Sulaimani from the generated raster maps. The characteristics of each of the raster maps used in this study were gave weight age of 1–5, depending on the layers effect on the occurrence of groundwater. The weight age factor 1 indicates low groundwater potentiality and 5 indicates high groundwater potentiality. The classifications of weighted factors impacting the potential zones are shown in Table 2.

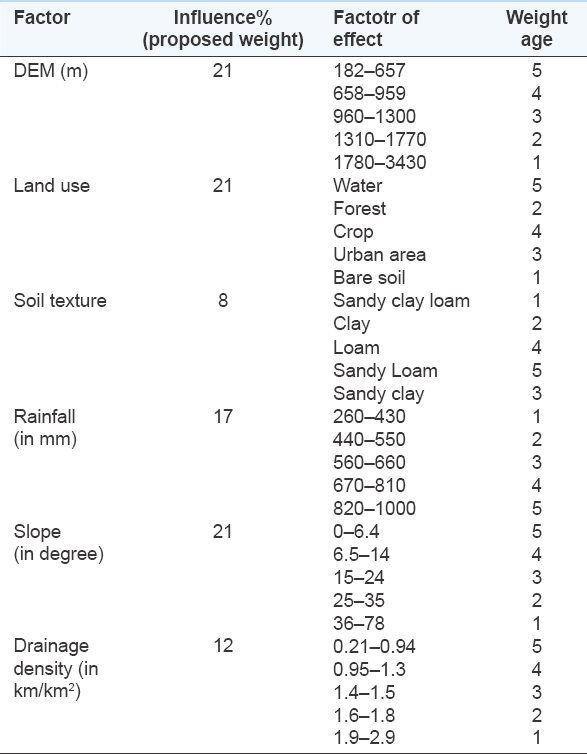

TABLE 2: Classification of weight age influencing the potential zones
4. RESULTS AND DISCUSSION
Based on the assignment of all layers influence and weight of the individual features of the thematic layers, a potential groundwater zone map was produced as shown in Fig. 9. According to the results, about 79% (14423.45 km2) of the study area can be classified as moderate groundwater recharge zone. About 1% (112.3746 km2) has very high groundwater potential zone and about 14% (2576.78 km2) has high groundwater potential zone, while only 6% (1168.015 km2) of the total study area is of low groundwater potentials. Based on Fig. 8, the high groundwater potential zones were covers about 50% of Halabja, Rania, Pshdar districts.

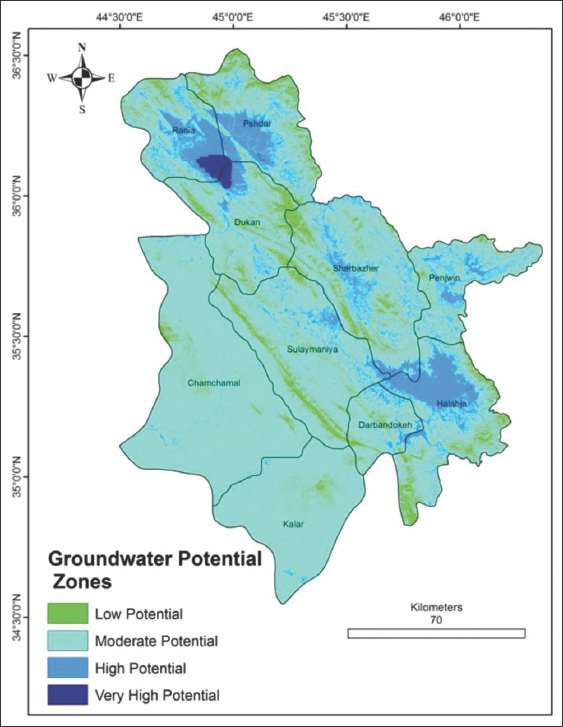

Fig. 9. Groundwater potential zones.
The results showed that the higher the elevations the less the groundwater potential, and in lower elevations the groundwater is more as the water accumulates in low lands. For slope arrangement, it shows that areas with steep slopes have less groundwater than with mild slope. Rainfall is also affects the potential groundwater zones; the areas that have more rainfall have more groundwater than those with less rainfall. Different LU/LC leave distinctive signatures on groundwater recharge, the areas of water body in the study area produced high groundwater recharge zone.
5. CONCLUSIONS
In this study, GIS and MIF techniques have been used for modeling groundwater potential zones by integrating various factors that have been chosen based on the availability of data for Sulaimani Governorate. Traditional data, topographic maps, and satellite imageries were used to prepare the thematic layers of (DEM), soil texture, LU/LC, slope, rainfall, and drainage density. The resulted map of groundwater recharge zones for Sulaimani Governorate was classified into four zones that had very high potential zone, high potential zone, moderate zone potential, and low potential zone and cover (1%), (14%), (79%), and (6%) of the total area, respectively. About 50% of the high groundwater potential zone were located in Halabja, Rania, and Pshdar districts. The groundwater potential zonation presented here can be applied only for regional studies for the purpose of groundwater development, providing quick prospective guides for groundwater exploration and exploitation, while individual site selection for groundwater development should take into consideration other site-specific conventional ground-truthing methods.
