Log File Analysis Based on Machine Learning: A Survey

3.1. Application Logs

Developers have a strong grip on application logs. It may include any kind of event, error message, or warning that the program generates. Application logs provide information to system administrators concerning the status of an application running on a server. Application logs should be well-structured, event-driven, and include pertinent data to assist as the center for higher-level abstraction, visualization, and aggregation. The application logs’ event stream is required for viewing and filtering data from numerous instances the programs.

3.2. Web Server Logs

Every user communication with the web is saved as a record in a log file called a “web log file” that is a text file with the extension “.txt.” The data created automatically of users’ interactions with the web, and will be saved in a variance log files, including server access logs, error logs, referrer logs, and client-side cookies. In the style of text file, this web log saves all and every web request executed by the client to the servers. Each line or record in the web log file links to a user’s request to the servers. The logs file for the web data are: Web Server Logs, Proxy Server Logs, and Browser Logs [8].

Web server logs typically include the IP address, the date and time of request, the exact request line providing by users, the URL, and the requested file type.

3.3. System Logs

The OS records specified events in System log. In addition, these logs are an excellent resource for obtaining information about external events. Typically, a system log includes entries generated by the OS, such as system failures, warnings, and errors. Individual programs may generate log files related with user sessions that include data on the user’s login time, interactions with the application, authentication result, and so on. While an operating system-generated log file is mentioned to as a system log, files produced by particular programs or users are related to as audit data. Examples include records of successful and unsuccessful login attempts, system calls, and user command executions [9].

3.4. Security Logs

Security logs are utilized to give enough capabilities for identifying harmful actions after their occurrence with the intention of prevent them from recurrence. Security logs preserve track of a range information that has been pre-defined by system administrators. For example, firewall logs contain information about packets routed from their sources, rejected IP addresses, outbound activity from internal systems, and failed logins. Security logs contain detailed information that security administrators must manage, regulate, and evaluate in conformity with their requirements [7].

3.5. Network Logs

Network Logs offer different information on various events that occurred on the networks. Among the events are the recording of malicious activity, a rise in network traffic, packet losses, and bandwidth delays. Network logs may be gathered from a range of network devices, including switches, routers, and firewalls. By monitoring network logs for various attack attempts, network administrators can monitor and troubleshoot normal networking.

3.6. Audit Logs

Record any network or system activity that is not allowed in a sequential order. It aids security managers in analyzing malicious activity during an attack. The source and destination addresses, timestamp and user login information are usually the most significant parts of information in audit log files.

3.7. Virtual Machine Logs

This log files include details on the instances that are executing on the VM, such as their startup configuration, operations, also the time they complete their execution. The VM logs retain track of many processes, including the number of instances operating on the VM, the execution duration of each application, and application migration, which assists the CSP in identifying malicious activity that happened while the attack [10]. Figure 1 show some of log file sources.

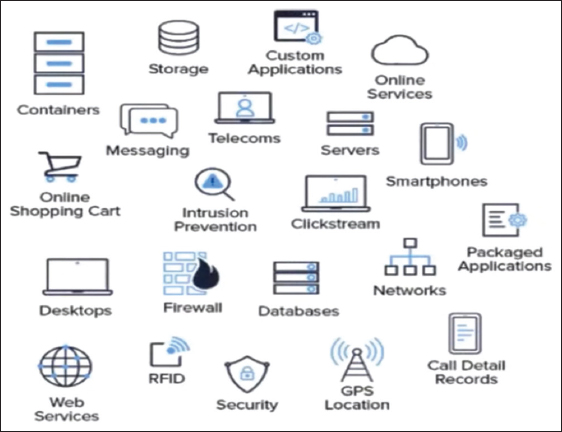

Fig. 1. Some of log file sources [11].

4.1. Data Preprocessing

The web logs contain raw data that cannot be utilized to generate information. During this step, engineers use techniques to transform original data for a usable format. Typically, real-world data are incomplete, unexpected, and lacking of behavior or patterns, in addition including many mistakes. Data pre-processing is a tried-and-true way of solving these issues.

4.2. Pattern Discovery

Those pre-processing results are then used to determine a pattern of frequent user access. To identify significant information, several data mining methods for instance association rules, clustering, classification, and sequential pattern approach will be used in pattern discovery. The information that has been obtained could be presented in a number of ways including graphs, charts, tables, and so on.

4.3. Pattern Analysis

Final outcome of the pattern discovery step are not utilized directly in the analysis. Accordingly, during this phase, a strategy or tool will be developed to assist analysts in comprehending the knowledge which has been gathered. Visualization approaches, Online Analytical Processing OLAP analysis, and this phase might involve the use of tools or methods for instance knowledge query mechanisms. Figure 2 Overview of the learning system.

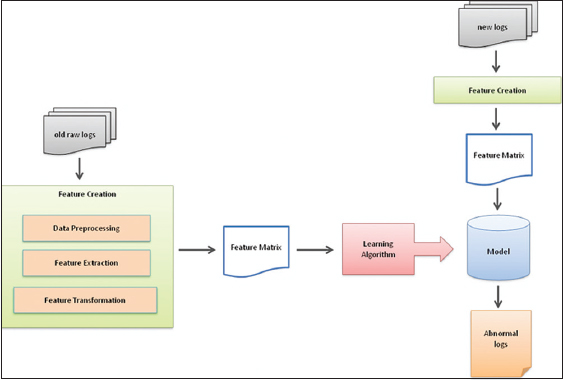

Fig. 2. Overview of the learning system [14].

5.1. Common Log File Format

Web servers create log files utilizing this standardized text file format. The setup of the standard log file format is provided in the box that follows.

Example of Common Log File Format [15].

5.2. Combined Log Format

It is like the previous log file format with the add of the referral field, user agent field, and cookie field. The setup for this format is shown in the box follows.

Example of Combined Log Format [15].

5.3. Multiple Access Logs

It is a hybrid of the common log and the combined log file format, with the ability to establish several directories for access logs. The structure of various access logs is detailed in the box that follows.

Example of Multiple Access Logs [15].

6.1. Data Preprocessing

It is critical to preprocess data to handle with different flaws in raw gathered data, which may include noise such as mistakes, redundancies, outliers, and other missing values or unclear data. The most prevalent procedures in data preprocessing are [16]:

6.2. Machine Learning

A science focused with the theory, performance, and features of learning systems and algorithms. ML is a highly interdisciplinary field that depend on techniques from several fields, including artificial intelligence, cognitive science, optimization theory, information theory, statistics, and optimal control. ML has permeated virtually every scientific subject on consequence of its broad use in a various of applications, having a tremendous impact on both research and society. It was used to a range of challenges, such as autonomous control systems, informatics and data mining, recognition systems, and recommendation systems [17].

ML is broadly classified into three subfields [18]:

Analysis of log files relevant to a failed execution may be laborious, particularly if the file contains thousands of lines. Utilizing current advancements in text analysis using deep neural networks (DNN), research [3] presents an approach to decrease the effort required to study the log file by highlighting the most likely informative content in the failed log file, which may aid in troubleshooting the failure’s causes. In essence, they decrease the size of the log file by deleting lines deemed to be of less significance to the problem.

7.1. Performance

Used to find the system’s performance during the optimization or troubleshooting phase. In the instance of performance, logs assist the administrator in clarifying how a specific system’s resource has been utilized.

7.2. Security

Security logs are a lot used to detect security breaches or misconduct and to conduct postmortem investigations into security occurrences. For example, intrusion detection requires reconstructing sessions from logs that identify illegal system access.

7.3. Prediction

In addition, logs have ability of producing predictive information. There are predictive analytic systems that utilize log data to assist with marketing plan development, advertising placement, and inventory management.

7.4. Reporting and Profiling

Furthermore, log analysis is required for analyzing resource usage, workload, and user activity. For instance, logs will capture the attributes of jobs inside a cluster’s workloads to profile resources utilize within large data center.

8.1. Identify User Behavior

User activity analysis using logs may provide significant information about users. User clustering based on logs enables the gathering of clients considering their activity and subsequent analysis of user access patterns, making it an excellent option for problem solving [20].

Xu et al. [21] examine use of HTTP traffic to find the identities of users. Techniques presuppose access to a proxy server’s log. Thus, it is likely to develop web use profiles for people who utilize devices with a static IP address. They demonstrated that given a web use profile, it is feasible to identify users on any other device or to monitor when another user uses a device. Technically, they divide web traffic across sessions that link to the traffic of a distinct IP address over a definite time period. They reduce every session to a frequency vector distributed over the vector space of accessible domain. They used a set of methods for instance-based user identification centered on this representation. Experiments showed that centered on gathered web usage profiles using Nearest Neighbor classification, user identification is achievable with a prediction accuracy of greater than 90%. This paper needs to examine the usage of more sophisticated identification and obfuscation methods integrating the time series of URLs more closely.

Kim et al.[22], based on user behavior modeling and anomaly detection techniques, the authors offered a framework for detecting insider threats throughout the user behavior modeling process. They constructed three datasets depending on the CERT database: Users daily action dataset, an e-mail content dataset, and an e-mail communication dataset depending on the user account and sending and receiving information. They proposed insider-threat identification models using those datasets, applying ML set anomaly detection methods to imitate real-world companies with just a few potentially harmful insiders’ activities. In this work, the authors employed classification algorithms for insider-threat detection. The findings in this study recommend that the suggested framework is capable of detecting malicious insider behaviors relatively effectively. On the basis of the daily activity summaries dataset, the anomaly detection achieved a maximum detection 90% percent by monitoring top 30% of anomaly. According to the e-mail content datasets, the detection 65.64 % detected while 30% of sceptical e-mails have been monitored. The paper’s limitation is that, although the dataset (CERT) used to building the system was carefully developed and contains a variety of threat scenarios, it stills an artificially and simulated produced dataset.

Prakash et al. [23] investigated for the scope of analyzing user prediction behavior based on users personalization obtained from web logs. A web log records the user’s navigation patterns when visiting websites. The user navigation pattern could be analyzed using the user’s recent weblog navigation. The weblog has several posts with data such as the status code, IP address, and amount of bytes sent, along with categories and a time stamp. User interests could be categorized according to categories and attributes, which aids in determining user behavior. The goal of this research is to differentiate between interested and uninterested user behavior through classification. The Modified Span Algorithm and the Personalization Algorithm are used to identify the user’s interest. Table 1 provides a summary list of studies we reviewed for the purpose of identifying user behavior.

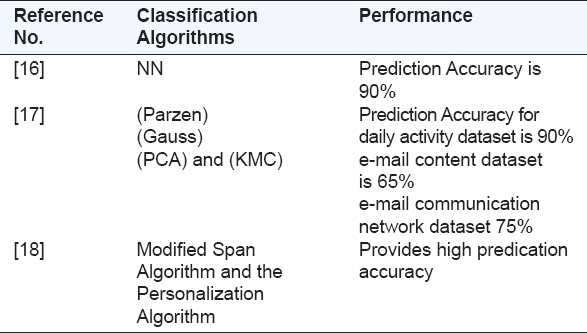

TABLE 1: A list of studies for the purpose of (identifying user behavior)

8.2. Security Issues

Recently, some researchers and programmers utilizing data mining methods to log-based Intrusion Detection Systems (IDS) resulted in a powerful anomaly detection-based (IDS) which depended solely on the inflowing stream of logs to discern what may be normal and what is not (possibly an attack) [24].

Zeufack et al. [25] offered a fully unsupervised framework for real-time detection of abnormalities. This concept is separated into two phases: A knowledge base development stage, that use clustering to identify common patterns, and A streaming anomaly detection stage that detects abnormal occurrences in real time. They test their framework on (Hadoop Distributed File System) log files and it successfully detects anomalies with an F-1 score of 83%. This framework ought to be improved to get advantages for other features that are embedding in a log file and has positive impact on anomalies detection.

The authors of [26] presented a Dempster-Shafer (D-S) evidence theory-based host security analysis technique. They acquire information of monitoring logs and use it to design security analysis model. They utilize three regression models as sensors for multi-source information fusion: Logistic regression, support vector regression, and K-nearest neighbor regression. The suggested technique offers excellent strong security for host. Improved ML approaches may increase accuracy of evidence in this research, resulting in more accurate probability values for host security analysis.

Study [27] a ML-based system for identifying insider threats in organizations’ networked systems is provided. The research discussed four ML algorithms: Neural Networks (NN), Random Forest (RF), Logistic Regression (LR), and XGBoost (XG) across multiple data granularities, limited ground truth, and training scenarios to assist cyber security analysts in detecting malicious insider behaviors in unseen data. Evaluation results showed that the proposed system can successfully learning from the limited training data and generalize to detect new users with malicious behaviors. The system has a great detection rate and precision, mainly when user-generated findings are considered. The downside: Will examine the utilization of temporal information in user activities. Specifically, all the systems in this research gave labels based on a single exemplar’s state description. Allowing models to view many exemplars or to maintain state (recurrent connections) can allow models to make non-Markovian decisions.

Shah et al. [28] offered an expanded risk management strategy for Bring Your Own Device (BYOD) to increase the safety of the device environment. The proposed system makes usage mobile device management system, system logs, and risk management systems to detect malicious activities using machine learning. They can state that the result achieved 99% detection rate with the practice of Support Vector Machine algorithm.

Tadesse et al. [29] employed multilayer log analysis to discover assaults at several stages of the datacenter. Thus, identifying distinct assaults requires considering the heterogeneity of log entries as an initial point for analysis. The logs were integrated in a common format and examined based on characteristics. Clustering and Correlation are the root of the log analyzer in the center engine, which operate alongside the attack knowledge base to detect attacks. To calculate the quantity of clusters and filter events according on the filtering threshold, clustering methods for instance Expectation Maximization and K-means were utilized. On the furthermore, correlation establishes a connection or link between log events and provides new attack concepts. Then, they analyzed the developed system’s log analyzer prototype and discovered that the average accuracy of SOM #34 and AAU is 84.37% and 90.01%, respectively. The downside: More log analysis or mining must be done to obtain meaningful information and minimize the false positive and negative results. Table 2 provides a summary list of studies we reviewed for the purpose of Security.

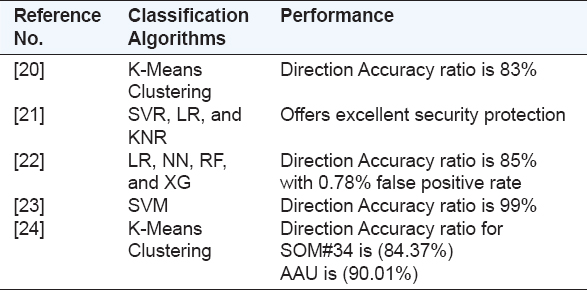

TABLE 2: A list of studies for the purpose of (Security)

8.3. System Maintenance

Log analysis is typically required during system maintenance because to the intricacy of network structure.

Chen et al. [30] studied the issue of extracting useful patterns using temporal log data. They present a new algorithm Discovering Patterns from Temporal Sequences (DTS) algorithm for extracting sequential patterns from temporally regular sequence data. Engineers can utilize the patterns that find to well know how a network-based distributed system behaves. They apply the Minimum Description Length (MDL) concept to well-known issue of pattern implosion and take another step forward in summarizing the temporal links between neighboring events in a pattern. Tests on actual log datasets showed the method’s effectiveness. Extensive tests on real-world datasets show that the suggested methodologies are capable of swiftly discovering high-quality patterns.

Cheng et al. [31] suggested a method for detecting anomalies using log file analysis. They extract normal patterns from log data and then do anomaly detection using Principal Component Analysis (PCA). Depending on the experimental results, they concluded that the proposed technique is a great success; this enables the technique to be devised and implemented to the real log file analysis, which makes the work of the system auditor easier. With a minimum of 66% and a high of 92.3%, the average accuracy in detecting anomalies is about 80%. Table 3 provides a summary list of studies we reviewed for the purpose of Maintenance.

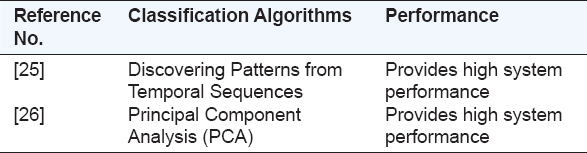

TABLE 3: A list of studies for the purpose of (Maintenance)
